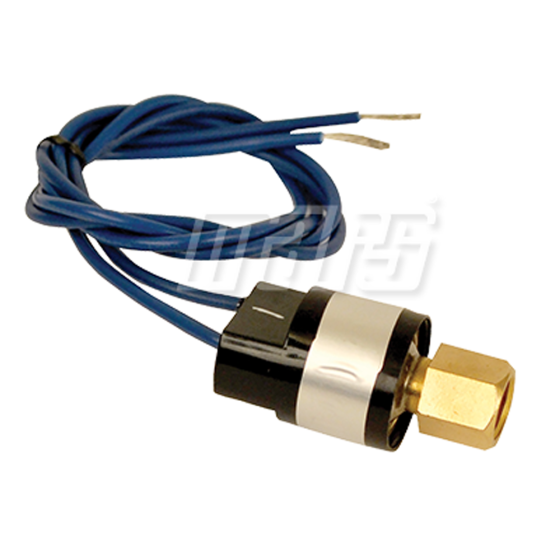

Mars® High Pressure Switch, 1/4" Female SAE (Close on Rise)
Item
43347
FEATURES & BENEFITS
• Switch Action: Close on Rise
• Range PSI: ±5
• Close PSI: 65
• Lead Length Inches: 18" Blue XLP Wire, 1/2" Stripped Ends
• Open PSI: 25
• Pressure Connection Type: 1/4" Female Flare with Deflator
• Reset Type: Auto Reset
• Switch Type: SPST
• Standards: UL Recognized
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.5 | Exterior Dimensions (D) (inches) | 3.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 0.500000 |
