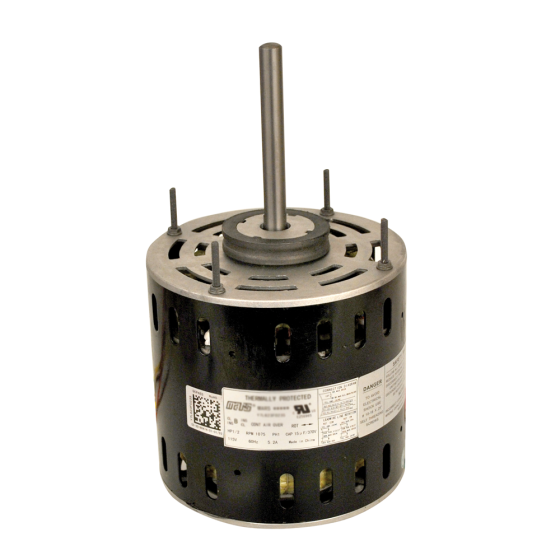

Mars® Hi-Efficiency Direct Drive Blower Motor 1/2 HP, 1075 RPM, 208/230Vac, 2.5A, 10µF/370Vac, 3 Speed, 40 °C (PSC)

Item

10578

FEATURES

• Permanently lubricated ball bearings

• Rheem mounting holes

• Extended thru bolts shaft end

• 3 Speed, Single Phase

• Capacitor required: 10 MFD 370V

• (2)2-1/4 & (2)2-1/2 Resilient Rings

• Thermal protected, air over

• 36 in. Leads

• No. of Poles: 6

• Motor Type: PSC

• Enclosure: OPAO

• HP (Max.): 1/2

• Voltage: 208-230

• Mounting: ThruBolt/All Angle

• Speeds: 3

• Hz: 60

• Rotation: REV

• RPM Range: 1075

• NEMA Frame Size: 48

• Phase: Single

• Standards: cULus

• FLA: 2.5

• Bearing: Ball

• Lead Length (in.): 36

• Thermal Protection: Auto

• Ambient Deg C: 40

• Ins. Class: B

• Shaft Dia. (in.): 1/2

• Capacitor Included: No

• Shaft Length (in.): 4.5

• Capacitor Rating: 10/370

• Duty: Continuous

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	15
Exterior Dimensions (D) (inches)	14.000000
Exterior Dimensions (W) (inches)	7.000000
Exterior Dimensions (H) (inches)	7.000000
Shipping Weight (lbs)	15.000000
