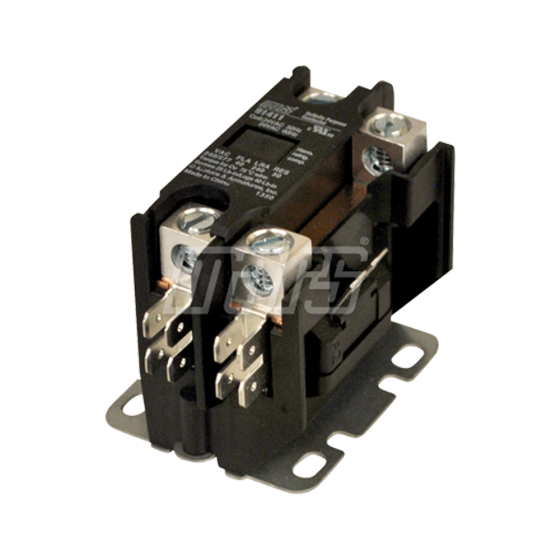

Mars® Contactor 1 Pole with Shunt, 24V Coil, 40FLA, 50RA, Lug Terminals
Item
91411
FEATURES & BENEFITS
• 1 Pole with 1 Shunt.• FLA: 40.
• Resistive Amps: 50.
• Coil Voltage: 24Vac.
• 240LRA @ 240Vac, 240LRA @ 277Vac.
• 4 Quick Connect Terminals Per Lug.
• Box lug terminals speed installation.
• Universal mounting base.
• Contact cover and enclosed coils reduce dirt and insect intrusion.
• Compact design.
• Silver-Cadmium contacts.
• Meets ARI 780/790 requirements.
• cULus Approval.
• 1,000,000 Cycle mechanical life.
| Electrical | |
|---|---|
| FLA | 40 | Hertz | 60 | Voltage | 240/277 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Coil Voltage | 24Vac | Poles | 1 |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.5 | Exterior Dimensions (D) (inches) | 2.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 2.000000 | Shipping Weight (lbs) | 0.500000 |
