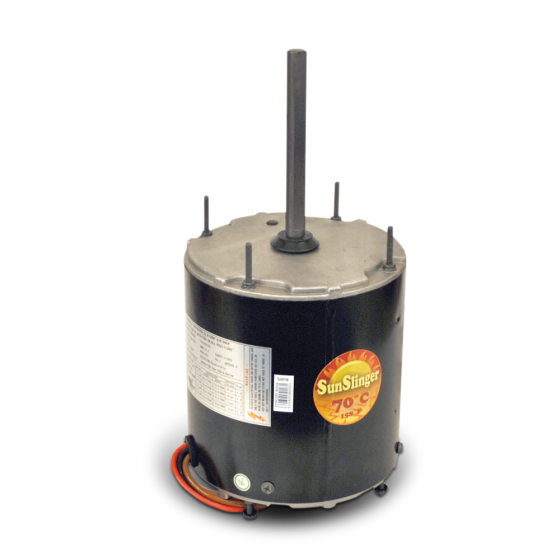

Mars® Multi- HP Condenser Fan Motor 1/8-1/3 HP, 825 RPM, 208/230Vac, 1.9A, 10µF/370Vac, 1 Speed, 70°C (PSC)

Item

20459

Skip to the beginning of the images gallery

FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/8-1/3
• RPM: 825
• Number of Speeds: 1
• Rotation: Reversible
• Voltage: 208/230Vac
• Amperage: 1.9
• Capacitor: 10µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 70 °C
• Shaft Size: 0.50 x 6.5

Specifications

Specification
Ambient Temperature	70 °C
Bearing Type	Ball
Motor Frame	48
Motor HP	1/8-1/3
Motor Type	PSC
Mounting Type	Thru Bolt/Mounting Holes/Belly Band
Number of Speeds	1
RPM	825
Shaft Diameter	0.50
Shaft Length	6.5

Electrical
Amps	1.9
FLA	1.9
Hertz	60
Voltage	208/230

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	20
Exterior Dimensions (D) (inches)	7.000000
Exterior Dimensions (W) (inches)	7.000000
Exterior Dimensions (H) (inches)	14.000000
Shipping Weight (lbs)	20.000000
