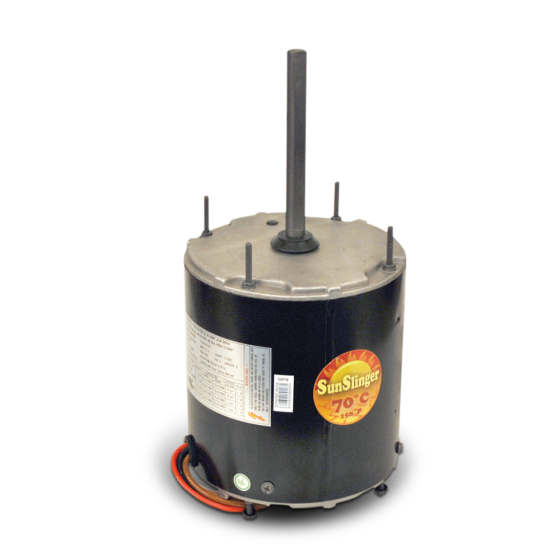

Mars® Multi HP Condenser Fan Motor 1/6-1/3 HP, 1075 RPM, 208/230 Volts, 2.5 FLA, 5µF/7.5µF/370v Cap Rating, 2 Speed

Item
20465
  • California Prop 65

PRODUCT DETAILS

MARS 70°C multi-horsepower SunSlinger condenser fan motors are ideal for truck stock. They are designed to provide reliable operation in a wide range of ambient temperatures. Three 1075 RPM models cover 208-230 volt applications from 1/6 to 1/2 HP. Two 825 RPM models cover 208-230 volt applications from 1/8 to 1/3 HP.

FEATURES & BENEFITS

• All angle.
• Rheem shell mounting holes with screws installed.
• Trane 4.33 bolt circle mounting holes with self tapping screws.
• Thru bolt or band mounting.
• Water slinger on shaft.
• Extra set of nuts on mounting studs.
• Class “B” insulation.
• Single phase, 60 Hertz.
• 70°C/158°F.
• 36 inch leads.
• Thermal overload protected.
• Fan duty, continuous, air over.
• Totally enclosed.
• UL Recognized.

Specification
Ambient Temperature 70 °C
Bearing Type Ball Bearing
Cap Rating 5µF/7.5µF/370v
Motor Frame 48
Motor HP 1/6-1/3
Motor Type PSC
Mounting Type Thru Bolt/Mounting Holes/Belly Band
Number of Speeds 2
Rotation CW/CCW
RPM 1075
Shaft Diameter 1/2"
Shaft Length 7"
Electrical
FLA 2.5
Hertz 60
Voltage 208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 20
Exterior Dimensions (D) (inches) 7.0000
Exterior Dimensions (W) (inches) 7.0000
Exterior Dimensions (H) (inches) 14.0000
Shipping Weight (lbs) 20.0000
