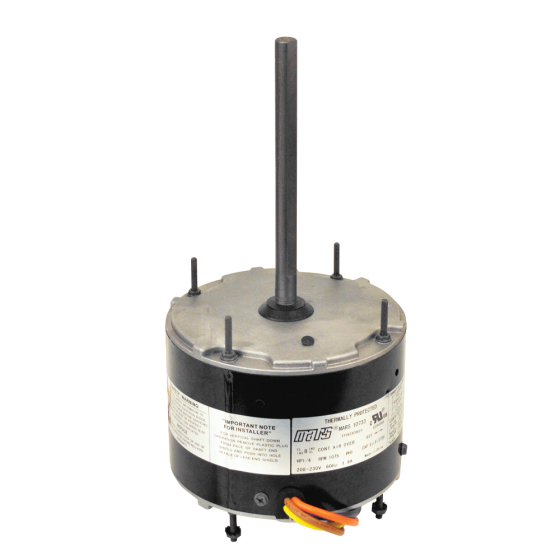

Mars® Condenser Fan Motor 1/3 HP, 825 RPM, 208/230Vac, 1.9A, 7.5µF/370Vac, 1 Speed, 60 °C (PSC)

Item

10205

FEATURES

• Vertical Shaft Up or Shaft Down

• Weep hole in each end shield

• Rheem mounting holes w/screws installed

• Water slinger on shaft

• Double full flatted shaft

• Thermally Protected

• Extended Studs/Belly Band/Mounting Holes

• No. of Poles: 8

• Motor Type: PSC

• Enclosure: TEAO

• HP (Max.): 1/3

• Voltage: 208-230

• Mounting: Thru Bolt/Belly Band

• Speeds: 1

• Hz: 60

• Rotation: REV

• RPM Range: 825

• NEMA Frame Size: 48

• Phase: Single

• Standards: UR/CSA

• FLA: 1.9

• Bearing: Ball

• Lead Length (in.) : 36

• Thermal Protection: Yes

• Ambient Deg C: 60

• Ins. Class: B

• Shaft Dia. (in.): 1/2

• Capacitor Included: No

• Shaft Length (in.): 6.5

• Capacitor Rating: 7.5/370

• Service Factor: 1.0

• Duty: Continuous

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	15
Exterior Dimensions (D) (inches)	14.000000
Exterior Dimensions (W) (inches)	7.000000
Exterior Dimensions (H) (inches)	7.000000
Shipping Weight (lbs)	15.000000
