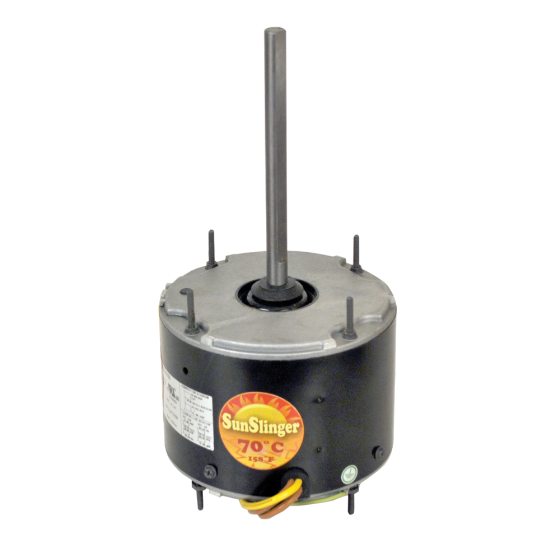

Mars® Condenser Fan Motor 1/2 HP, 1075 RPM, 460Vac, 1.3A, 10µF/440Vac, 1 Speed, 70 °C (PSC)

Item

20838

FEATURES

• 70°C SunSlinger

• Ball Bearing, Single Phase

• Rheem mounting holes w/screws installed

• Trane 4.33 bolt circle mtg holes w/self tap screws

• Thru Bolt or Band Mounting

• Water Slinger on shaft

• Capacitor requirement noted on motor label

• Class F insulation

• Thermal Overload, Continuous Duty

• No. of Poles: 6

• Motor Type: PSC

• Enclosure: TEAO

• HP (Max.): 1/2

• Voltage: 460

• Mounting: Thru Bolt/All Angle

• Speeds: 1

• Hz: 60

• Rotation: REV

• RPM Range: 1075

• NEMA Frame Size: 48

• Phase: Single

• Standards: CUL

• FLA: 1.3

• Bearing: Ball

• Lead Length (in.): 36

• Thermal Protection: Auto

• Ambient Deg C: 70

• Ins. Class: F

• Shaft Dia. (in.): 1/2

• Capacitor Included: No

• Shaft Length (in.): 6.5

• Capacitor Rating: 10/440

• Duty: Continuous

Electrical
Amps	1.3
Voltage	460

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	15
Exterior Dimensions (D) (inches)	15.000000
Exterior Dimensions (W) (inches)	8.000000
Exterior Dimensions (H) (inches)	8.000000
Shipping Weight (lbs)	15.000000
