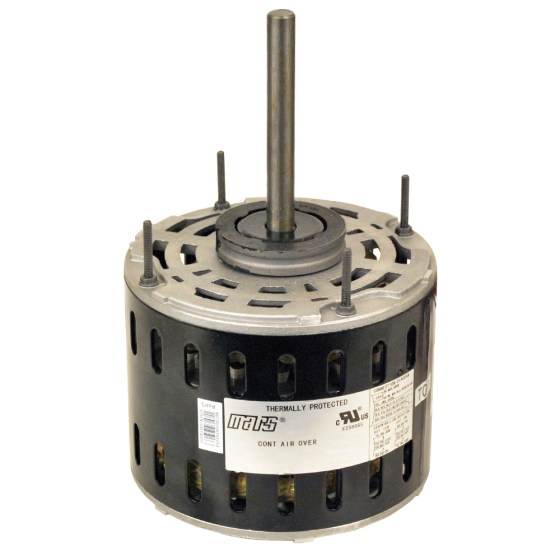

Mars® Direct Drive Blower Motor 1 HP, 1075 RPM, 208/230 Volts, 5.6 FLA, 15µF/370v Cap Rating, 3 Speed

Item
10592
  • California Prop 65

PRODUCT DETAILS

MARS direct drive furnace blower motors are three speed standard efficiency models. All models are electrically reversible and include 2-1/4 inch resilient rings for base mounting. These models have all angle sleeve bearings and have open air over enclosures.

FEATURES & BENEFITS

• Sleeve bearing.
• Rheem mounting holes.
• 3 speeds.
• 1/2 inch extended thru bolts.
• 2-1/4 inch resilient rings.
• Class “B” insulation.
• Single phase, 60 Hertz.
• Thermal overload protected.
• Fan duty, continuous, air over.
• Open construction.
• 36 inch leads.
• UL Recognized.

Specification
Ambient Temperature 40 °C
Bearing Type Sleeve
Cap Rating 15µF/370v
Motor Frame 48
Motor HP 1
Motor Type PSC
Mounting Type Belly Band
Number of Speeds 3
Rotation CW/CCW
RPM 1075
Shaft Diameter 1/2"
Shaft Length 4-1/2"
Electrical
FLA 5.6
Hertz 60
Voltage 208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 20
Exterior Dimensions (D) (inches) 7.0000
Exterior Dimensions (W) (inches) 7.0000
Exterior Dimensions (H) (inches) 14.0000
Shipping Weight (lbs) 20.0000
