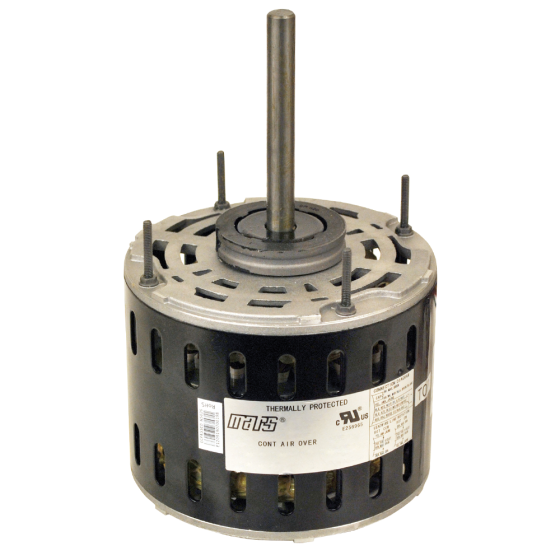

Mars® Direct Drive Blower Motor 1 HP, 1075 RPM, 115Vac, 11.8A, 20µF/370Vac, 3 Speed, 40°C (PSC)

Item

10591

Skip to the beginning of the images gallery

FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1
• RPM: 1075
• Number of Speeds: 3
• Rotation: Reversible
• Voltage: 115Vac
• Amperage: 11.8
• Capacitor: 20µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Sleeve
• NEMA Frame Size: 48
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 40 °C
• Shaft Size: 0.50 x 4.5

Specifications

Specification
Ambient Temperature	40°C
Bearing Type	Sleeve
Motor Frame	48
Motor HP	1
Motor Type	PSC
Mounting Type	Belly Band
Number of Speeds	3
RPM	1075
Shaft Diameter	0.50
Shaft Length	4.5

Electrical
Amps	11.8
FLA	11.8
Hertz	60
Voltage	115

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	20
Exterior Dimensions (D) (inches)	7.000000
Exterior Dimensions (W) (inches)	7.000000
Exterior Dimensions (H) (inches)	14.000000
Shipping Weight (lbs)	20.000000
