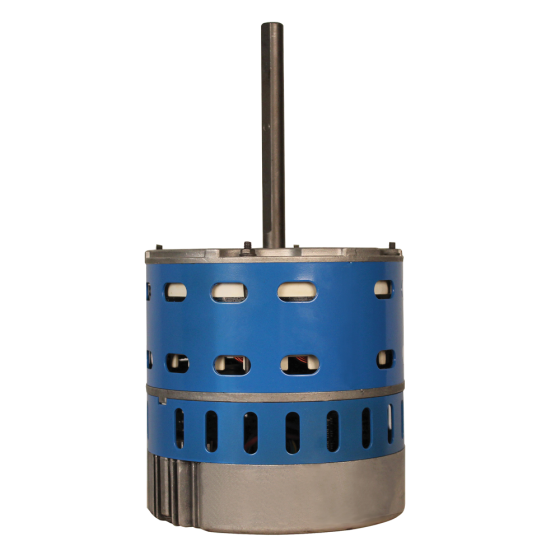

Mars® Azure® Multi-Horsepower Direct Drive Blower Motor 1/4-1/2HP, 1075RPM, 120/240Vac, 6.4/3.8A, 5 Speed, 55 °C (ECM)
Item
10856
FEATURES
The newest generation of Azure® ECM featuring integrated Bluetooth control for use with the Azure® ECM smartphone app. While not required for the installation of these motors, the app allows the installer to take full advantage of the ECM technology.
Bluetooth ControlFree app (AZURE ECM) is available on both Apple and Google stores.
Intuitive
Drop down menus and data inputs are simple and make sense.
Plug and Play
Azure connects directly to OEM harnesses; additional module or adapter is not required.
Adjustable Torque
The app allows optimization of airflow even if ductwork is not optimal.
Ultimate Truck Stock
Save time and money. Two Azure ECMs replace A LOT of motors!
• Replaces 16 Pin OEM Variable Speed ECM, PWM, 2.0, 2.3, 2.5 EON®; and Evergreen® VS, Rescue® EZ16®
• Replaces Many* 4 Pin OEM Variable Speed ECM 3.0; and Evergreen® VS
• Replaces Constant Torque X13®, Endura® Pro, SelecTech®; and Evergreen® EM, Rescue® EZ13®
• 4 speeds plus 625 RPM constant fan mode
• High efficiency 85%
• Multi-horsepower, dual voltage
• Belly band mount
SPECIFICATIONS
• Motor Type: ECM• Enclosure: OAO
• H.P. (Max.): 1/2
• Voltage: 120/240
• Multi-Rated H.P.: 1/4-1/2
• Speeds: 5
• Hz: 50/60
• Rotation: REV+FWD
• RPM Range: 1075 Variable
• NEMA Frame Size: 48
• Phase: Single
• Standards: CUL
• FLA: 6.4/3.8
• Mount: Belly Band
• Bearing: Ball
• Shaft Length Inches: 4.94
• Shaft Dia Inches: 1/2
• Thermal Protection: REDUNDANT Electronic Control CIRCUITS
• Ambient Deg C: 55
• NOTE: Bluetooth Control - AZURE ECM App
• Ins. Class: B
• Capacitor Included: No
• Replaces: Variable Speed ECM and Constant Torque
Specification | |
---|---|
Ambient Temperature | 55 °C | Motor Type | ECM | Number of Speeds | 5 | RPM | 1075 |
Electrical | |
---|---|
Voltage | 120/240 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 20 | Exterior Dimensions (D) (inches) | 14.000000 | Exterior Dimensions (W) (inches) | 8.000000 | Exterior Dimensions (H) (inches) | 8.000000 | Shipping Weight (lbs) | 20.000000 |
