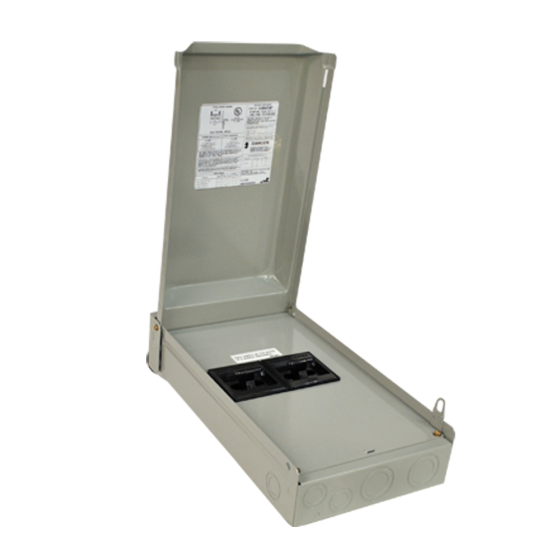

Mars® 100A Fusible Disconnect 120/240Vac, 1 Phase, NEMA 3R

Item

83325

FEATURES

For Applications that require individual Heating & Cooling Cycles

• No. of Poles: 2

• Type: Top Open A/C Disconnect

• Amp Rating: 100 Amp

• Fused or Non-Fused: Fused

• Color: Gray

• Voltage Rating: 120/240

• Width (in.): 17.38

• Side or Top Open: Top

• Enclosure Material: Steel

• Depth (in.): 9.75

• Outlet - GFI: No

• Phase: Single

• Standards: UL/CUL

• NEMA Enclosure: NEMA 3R

• Height (in.): 5.19

Electrical
Phase	1
Voltage	120/240

Safety Standards
California Prop 65	Yes

Specification
Amp Rating	100

Weights and Dimensions
Operating Weight (lbs)	5
Exterior Dimensions (D) (inches)	6.000000
Exterior Dimensions (W) (inches)	10.000000
Exterior Dimensions (H) (inches)	18.000000
Shipping Weight (lbs)	5.000000
