Magnetic Alarm Contact Press Fit and Recessed (100pk)
Item
DC-1641

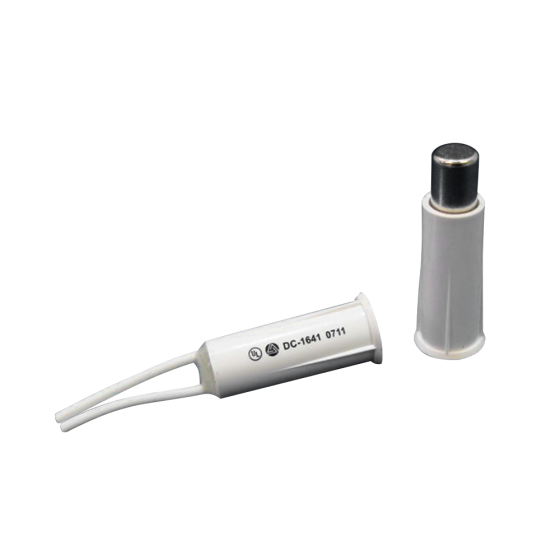

Aleph DC-1641 Magnetic Alarm Contact Press Fit and Recessed
- High Quality Magnetic Contact
- Hermetically Sealed Switch
- Rhodium Over Gold Reeds
- High Grade Magnets
- Press Fit and Recessed Magnetic Contact
- Normally Closed (NC) Loop
- 1" Wide Gap
Package Includes:
- 100 Per Pack
- 3/8" Recessed Magnets (1 1/4" L)
- 3/8" Press Fit Contacts (1" L)
- 12" Wiring (UL-1007 AWG#22) Leads
- Simple Installation Guide
- Color:
- UPC: 7806734017399 (White) P/N: DC-1641W
- UPC: 780673401400 (Brown) P/N: DC-1641B
- Max Contact Rating 28VDC, 0.5A, 10W
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Hazardous Material | No |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 2.500000 | Exterior Dimensions (W) (inches) | 0.625000 | Exterior Dimensions (H) (inches) | 0.750000 | Shipping Weight (lbs) | 1.000000 |
