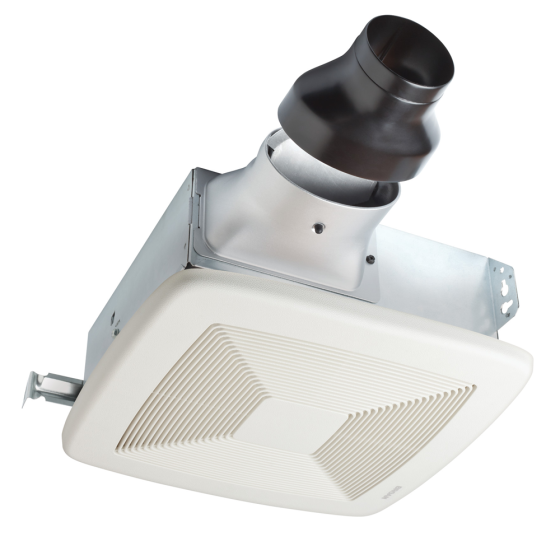

The Broan® LoProfile LP80 Ventilation Fan is designed for installations where conventional ventilation simply won't fit. When a multi-family application requires it, the LoProfile fan is narrow enough to be installed in a wall between 2 x 4 studs. When plumbing or electrical obstructions are found behind the drywall in ceiling remodel applications, the LoProfile fan can still fit without having to move anything, and that means most any room with space constraints can have powerful, quiet, efficient ventilation. In residential garage applications, use the LP80 to get rid of heat, humidity and unwanted smells. Mount in the wall between 2 x 4 studs and easily duct to a wall cap. (Wall cap and ducting not included.)
FEATURES & BENEFITS
• 4" oval or 3" round duct connection for installation flexibility, allows for ceiling or wall mounting • ENERGY STAR® Certified efficient operation for lower utility bills • UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only) • Powerful enough for rooms up to 75 sq. ft. • Brighter white grilles blend in to match most common ceiling paint • Corrosion resistant galvanized steel housing stands up to moisture • Permanently lubricated AC motor engineered for continuous operation • Comparable to NuTone Model LPN80 • Fight heat, humidity buildup and unwanted smells inside the garage • Ventilate a one car garage, either attached or detached from the home • Use for spot ventilation in a larger garage near a work bench, car, garbage can, lawn mower, or other spaces within the garage • Tested and approved for extreme hot and cold weather • CFM(@ 0.125 SP): 86 • Duct Size: 4" Oval (or 3" Round) • ENERGY STAR® certified: Yes • Grille Length: 13 • Grille Width: 13.75 • Housing Dimensions: 10-1/2" x 11-3/8" x 4" • Sound Level (Sones): 1 • UL Listed: Yes • Grille Finish: White • Humidity Sensing: No • Motion Sensing: No • Motor Engineered for Continuous Operation: Yes • Night Light: No • Radiation Damper Available: Yes • Room Side Installation: No • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes • Recommended Room Size (Sq Ft): 75 • Rated Amps: 0.3 • Voltage: 120 • Can Be Used to Comply with Title 24: Yes • Minimum Construction Space Required: 2" x 4" • Manufacturer Warranty: 1 Year • High Efficiency Luminaire: No
BLOWER: • Plug-in, permanently lubricated motor - engineered for continuous operation • Dynamically balanced centrifugal blower wheel for quiet, efficient performance • Low RPM for quiet operation
HOUSING: • Rugged, galvanized steel construction • Metal, 4” oval duct connector with no metallic clatter • Includes 4" oval to 3" round duct reducer • 4” height allows for 2” x 4” wall or ceiling installation • Sturdy, easy, mounting directly to stud or joist • Can be mounted in flat ceilings, sloped ceilings up to 12/12 pitch, and walls
GRILLE: • Polymeric construction • Innovative design - the result of extensive research with designers and consumers
CONTROLS (Purchase separately) : • Refer to Broan’s catalog for a complete line of accessories to effectively adapt this fan to your construction requirements. • Can be used to ventilate excess heat and humidity from single family, residential garages. • cU.L.us Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only). • 1-Year Warranty
