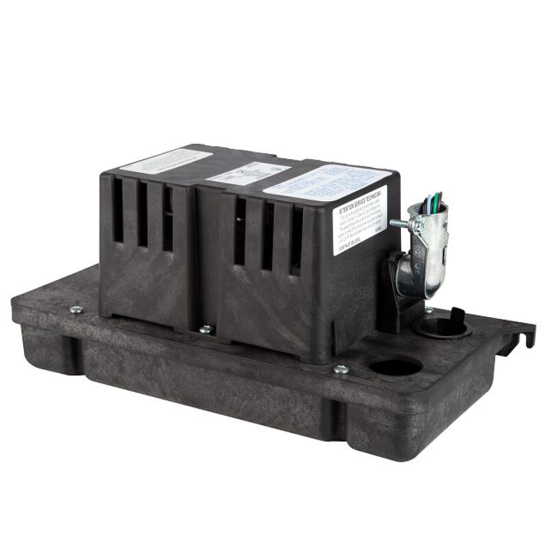

VCCA-20-P Series Low Profile pump is designed for automatic collection and removal of condensate from air conditioning, refrigeration, and dehumidification equipment installed in air handling and plenum applications having limited space and where gravity drainage is not possible or practical.
Featuring a vertical centrifugal pump design, the Plenum Series line of low-profile condensate pumps features a 1/30 hp thermal protected motor with stainless steel motor shaft. The pump is controlled by a float switch mechanism, which automatically starts and stops the pump. It also includes a high-water level switch, which opens a thermostat circuit when the pump reservoir is full, stopping the production of condensate.
FEATURES & BENEFITS
• HP: 1/30 hp • Frequency: 50/60 Hz • Amps - Full Load: 0.6 A • Full Load Watts: 75 W • Volts: 230 VAC • Cord Length: 6 ft / 1.83 m • Continuous Duty: No • Max Flow Rate - 60 Hz: 1.33 GPM / 80 gph / 303 Lph / 5.05 Lpm / 0.3 m³/h • Flow Rate At 1ft: 1.33 GPM / 80 gph / 303 Lph / 5.05 Lpm / 0.3 m³/h • Max PSIG: 7.4 PSI • Max Flow Rate - 50Hz: 1.33 GPM / 80 gph / 303 Lph / 5.05 Lpm / 0.3 m³/h • Shut-Off: 17 ft / 5.18 m • Safety Switch: YES • Max Fluid Temperature: 140 °F • Check Valve: Yes • Discharge: 3/8 " • Product Width: 5.03 " / 12.78 cm • Product Height: 5.24 " / 13.31 cm • Product Length: 11.99 " / 30.45 cm • Product Weight: 4.5 lb. / 2.04 kg • Tubing Included: No • Electrical Agency Approvals: CSA/UL • Standard Warranty: 12 Months
