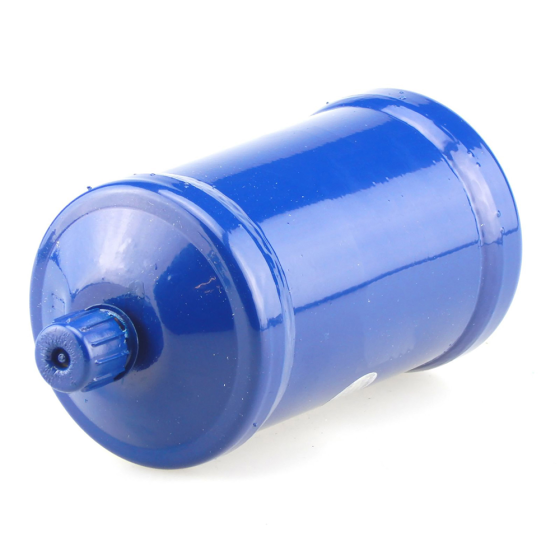

Liquid Line Filter Drier 3/8" ODF 16cu. in.
Item
EK163S
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
PRODUCT DETAILS
The EK Liquid Line filter drier is a premium compacted bead filter drier with a 20 micron outlet pad for maximum filtration.
The EK is a premium universal replacement liquid line filter drier for CFC, HCFC and HFC refrigerants including R-12, R-134a, R-22, R-404A, R-407C, R-410A, R-500, R-502, and R-507.
FEATURES & BENEFITS
• Filtration first for more effective use of surface area of desiccant.• High moisture and acid removal capacity.
• Solid copper connections.
• Corrosion resistant epoxy powder paint finish.
• Shock resistant steel shell construction.
• Desiccant blend - optimized for high water capacity and acid capacity
• Filtration: 20 microns
• Maximum working pressure: 680 psig
• UL/CUL file number: SA 3124
• Connection Inlet Size: 3/8" ODF
• Connection Outlet Size: 3/8" ODF
• Desiccant Volume: 16cu. in.
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 2.900000 | Exterior Dimensions (W) (inches) | 8.400000 | Exterior Dimensions (H) (inches) | 2.700000 | Shipping Weight (lbs) | 1.000000 |
