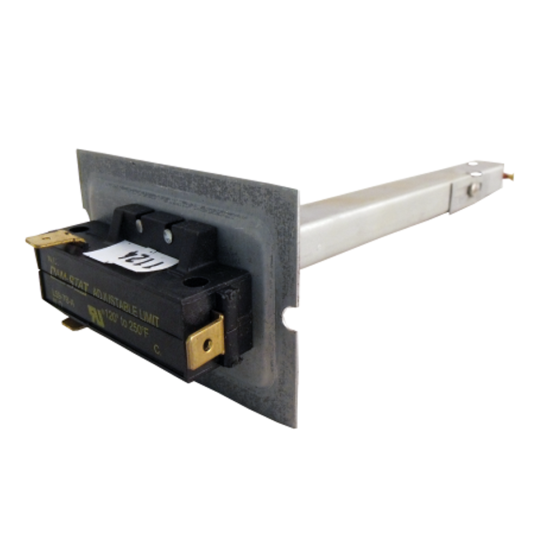

7" Limit Control

Item

L59-7B-A

FEATURES & BENEFITS

• User adjustable temperature setting
• SPDT switch
• UL® Recognized
• N.O. Contacts: 125VA at 120 and 240VAC
• N.C. Contacts: 2.9FLA, 17.4LRA at 240VAC
• N.C. Contacts: 5.8FLA, 34.8LRA at 120VAC
• Pilot Duty NC Contact: 40VA at 30, 120 and 240VAC
• Fixed differential: 30 °F
• Fan off temp.: 150 °F to 250 °F
• Length: 7"

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	50
Exterior Dimensions (D) (inches)	6.000000
Exterior Dimensions (W) (inches)	6.000000
Exterior Dimensions (H) (inches)	6.000000
Shipping Weight (lbs)	80.000000

Resources

L59-7B-A.pdf
