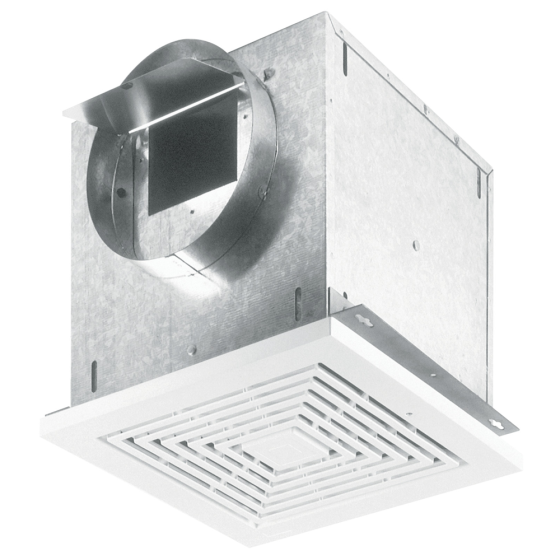

Broan® Losone Select™ High-Capacity Ventilation Fan 8 in. Round Duct, 210CFM, 1.7 Sones, 120Vac (Wall Mountable)

Item
L200
  • California Prop 65

APPLICATIONS

The Broan® Losone Select™ L200 High-Capacity Ventilation Fan is an exceptionally quiet solution to continuous ventilation. With the heavy-duty motor, high-capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, it works quietly without getting noticed. 8-way adjustable mounting brackets are included for easy ceiling-mount installation.

FEATURES & BENEFITS

• Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
• Duct horizontally, vertically or Inline with separate adapter
• Model 80L Variable Speed Control adjusts blower speed and sound level (available separately)
• UL listed and cUL listed for your safety and protection
• AMCA licensed for air and sound performance
• Powerful enough for rooms up to () sq. ft.
• Heavy-gauge galvanized steel housing resists corrosion
• Single, impact-resistant centrifugal blower wheel
• CFM (@ 0.125 SP): 210
• Duct Size: 8" Round
• ENERGY STAR® certified: No
• Grille Length: 14
• Grille Width: 14
• Housing Dimensions: 12-1/4" X 12-1/4" X 11-3/4"
• Sound Level (Sones) : 1.7
• UL Listed: Yes
• Grille Finish: White
• Humidity Sensing: No
• Motion Sensing: No
• Motor Engineered for Continuous Operation: Yes
• Night Light: No
• Radiation Damper Available: Yes
• Room Side Installation: No
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: No
• Rated Amps: 1.8
• Voltage: 120
• Can Be Used to Comply with Title 24: No
• Manufacturer Warranty: 1 Year
• High Efficiency Luminaire: No

GRILLE:
• Conceals interior
• Low profile styling blends with any decor
• White polymeric (“MG” models - metal, finished with white painted enamel)

BLOWER:
• Low RPM for quiet operation
• Resilient anti-vibration mounts
• Dynamically-balanced, polymeric, centrifugal blower wheel for quiet, efficient performance (Model L300KMG-metal wheel)
• Permanently lubricated, thermally protected motor
• Plug-in motor rated at 120 VAC
• Designed for continuous operation

HOUSING:
• Rugged, 20 gauge galvanized steel
• 8” round duct connector
• 1/2” acoustic insulation inside (Model L300KMG – no insulation - for kitchen applications)
• May be installed in ceiling or wall (size permitting)
• 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements
• Automatic backdraft damper located within duct connector
• Factory-shipped in horizontal discharge position – easily converted to vertical discharge
• May be installed as an Inline ventilator with addition of accessory kit Model 981L (purchase separately)

ACCESSORIES (purchase all separately):
• Model 57V (Ivory) / 57W (White) 3-Amp, Electronic Variable Speed Control
• Model 59V (Ivory) / 59W (White) 60-Minute Time Control
• Model 61V (Ivory) / 61W (White) 15-Minute Time Control
• Model 71V (Ivory) / 71W (White) 12-Hour Time Control
• 6-Amp, Electronic Variable Speed Controls Model 72V/72W (120 VAC)
• Model 981L Inline Adapter Kit
• Model RD1 Radiation Damper
• Model LAF1 Grease Filter (for Model L300KMG)
• Model 80L Electronic Speed Control (Internal)

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 11
Exterior Dimensions (D) (inches) 12.250000
Exterior Dimensions (W) (inches) 12.250000
Exterior Dimensions (H) (inches) 11.750000
Shipping Weight (lbs) 11.000000
Specification
CFM 210
