Thermostatic Expansion Valve Kit, R410A, 4 to 5 Ton

Item
KSATX0401PUR
  • California Prop 65

PRODUCT DETAILS

All valves in the Puron TXV kits are bi-flow, balanced port,non-adjustable and hard shutoff design. The hard shutoff design has no bleed port and allows no bleed-through after system shutdown.

APPLICATIONS

• The Puron TXV can be mounted in any position and feed in any direction. Mounting the TXV exterior of the coil cabinet is acceptable.
NOTE: Always mount as close to the indoor coil as possible.
NOTE: Mounting the TXV in the upright position is preferred. Mounting TXV upside down may increase the chance that debris could deposit on the internal check valve and hold the check valve open during cooling and act as a bleed port.

FEATURES & BENEFITS

• Refrigerant: R410A
• Capacity: 4 to 5 Ton

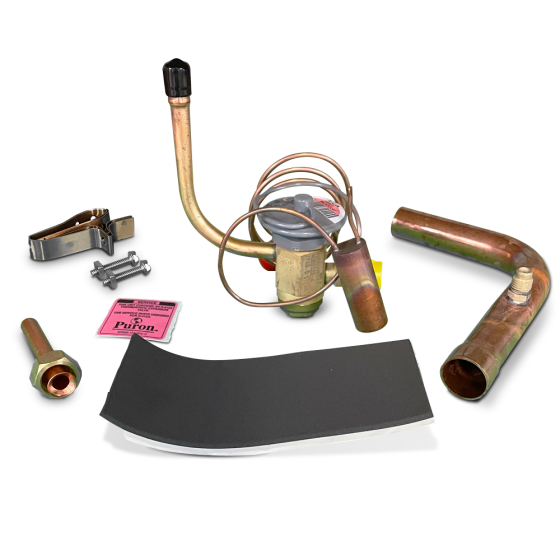

INCLUDES

• Thermostatic Expansion Valve Assembly
• Vapor Elbow with Equalizer Adapter (1)
• Copper Bulb Straps (2)
• Swivel Flare Adapter
• Bulb Insulation
• Installation Instruction

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 4
Exterior Dimensions (D) (inches) 10.000000
Exterior Dimensions (W) (inches) 4.000000
Exterior Dimensions (H) (inches) 5.000000
Shipping Weight (lbs) 4.000000
