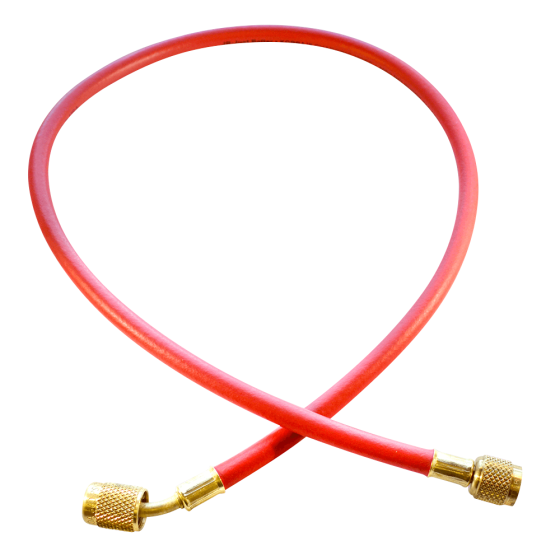

JustBetter® KOBRA® Secure Seal Charging Hose 800 psi, 1/4" x 1/4" x 60" (Red)
Item
CLS-60R
FEATURES
• 800 psi working; 4000 psi burst• UL R410A approved Secure Seal, specially designed to lock refrigerant inside the hose without the need for a ball valve attachment; opens to full flow
• Three point contact on depressor
• Fully field repairable with 33112RK/33115RK Rebuild Kits
• Stainless steel thrust washer ensures free rotation under high pressure
• Patent pending design of the fittings features a hood that locks the gasket into the fitting with a straight edge to straight edge force that eliminates the blowout of the gasket
• Barbed depressor locks into the gasket, exuding more outward force and pushing the gasket further into place
• Depressor is precisely machined for maximum flow and has a dimple that guides the valve core into place
• Common crimp grips the full circumference of the hose yielding maximum hold and uniform seal that prevents leaks and bursts
• Kevlar® lined
• 5 to 1 safety factor (beats industry standard of 4 to 1)
• P90022 replacement O-ring
• Rebuild kit 33112RK
Specification | |
---|---|
Length | 60 in. |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 2 | Exterior Dimensions (D) (inches) | 10.000000 | Exterior Dimensions (W) (inches) | 10.000000 | Exterior Dimensions (H) (inches) | 5.000000 | Shipping Weight (lbs) | 2.000000 |
