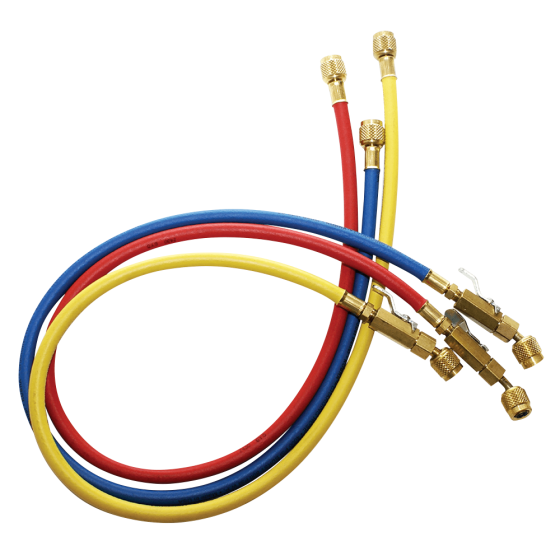

JustBetter® KOBRA® Gasket Seal Quarter-Turn Ball Valve Hose Kit 800 psi, 1/4" x 1/4" x 60"
Item
CCLBV-60
FEATURES
• 800 psi working; 4000 psi burst.• Meets non-venting requirements by trapping refrigerant with ball valve.
• 5 to 1 safety factor (beats industry standard of 4 to 1)
• 1/4 turn lever-style ball valve fitting at one end opens to full flow.
• Kevlar® Reinforced
• Patent pending design of the fittings features a hood that locks the gasket into the fitting with a straight edge to straight edge force that eliminates the blowout of the gasket.
• Barbed depressor locks into the gasket, exuding more outward force and pushing the gasket further into place.
• Depressor is precisely machined for maximum flow and has a dimple that guides the valve core into place.
• KOBRA® high pressure hoses are reinforced with Kevlar® which makes hoses strong and flexible, while the nitrile cover extends the life of the hoses better than neoprene.
| Specification | |
|---|---|
| Length | 60" | Fitting Size | 1/4" x 1/4" |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 5 | Exterior Dimensions (D) (inches) | 12.000000 | Exterior Dimensions (W) (inches) | 12.000000 | Exterior Dimensions (H) (inches) | 4.000000 | Shipping Weight (lbs) | 5.000000 |
