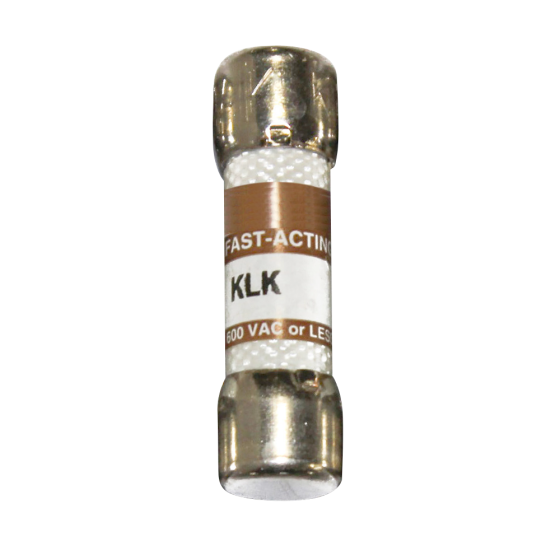

Fast-Acting Fuse 20a, 600Vac

APPLICATIONS

The KLK Series fuses is a fast-acting, high-interrupting capacity fuse designed for control circuits, HID lighting, street-lighting, meter circuits.

FEATURES & BENEFITS

• Voltage Ratings 600 Vac, 500 Vdc
• Ampere Rating: 20
• Interrupting Ratings 100 kA @ 600 Vac 50 kA @ 500 Vdc (capable of 200 kA)
• Approvals UL Listed (E10480)
• CSA Certified (LR29862)
• Dimensions L 38.1mm (1 1/2”)
• D 10.31mm (13/32”)
