Gas Conversion Kit (NG to LP)

Item
KGCNP5201VSP
  • California Prop 65

PRODUCT DETAILS

This kit is used to convert the following furnaces from natural gas usage to propane gas usage. See appropriate section for your furnace type.

Section 1 59MN7 & 987M 4-Way Multipoise, Hot Surface Ignition, Modulating Condensing Furnaces. 59TN6, 59TP6, 926T, 986T, PG96V_T, 4-Way Multipoise, Hot Surface Ignition, 2-Stage, Variable-Speed Condensing Furnaces. This kit applies to 40,000 to 120,000 Btuh gas input rates.

Section 2 58CTW, 58CTY, 58CVA, 58CVX, 314AAV, 314JAV, 315AAV, 315JAV, PG8MVA, PG8JVA, & PG8JVB 33.3In.(846 mm) High, Induced-Combustion, Hot-Surface Ignition, 2-Stage, Variable-Speed, Non-Condensing Furnaces. This kit is designed for use in furnaces with 42,000 through 154,000 Btuh gas input rates.

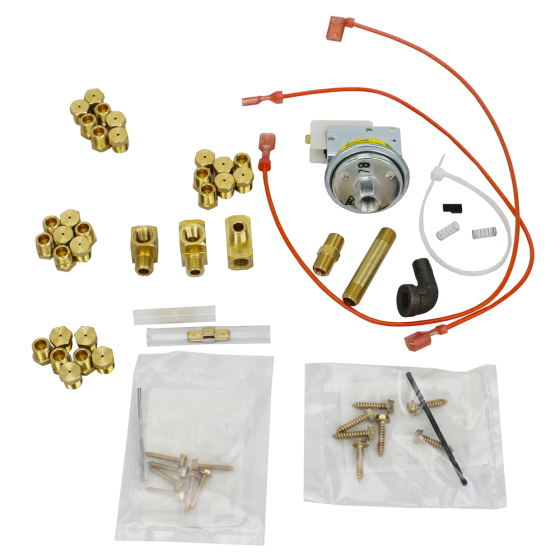

INCLUDES

• Conversion Kit Valve: EF92ZW002 (QTY 1)
• Conversion Kit Spring: EF39ZW023 (QTY 2)
• Low Pressure Switch: HK02LB008 (QTY 1)

Bag Assembly: 323269-704 (QTY 1)
• Orifice (#55): LH32DB201 (QTY 7)

Bag Assembly: 323269-704 (QTY 1)
• Orifice (#56): LH32DB206 (QTY 7)

Bag Assembly: 323269-703 (QTY 1)
• Orifice (1.25mm): LH32DB209 (QTY 7)

Bag Assembly: 323751-702 (QTY 1)
• Orifice (1.30mm): LH32DB210 (QTY 7)

Bag Assembly: 337932-701 (QTY 1)
• Screw: FAJ5812B (QTY 7)
• Drill Bit (7/64"): 328456-402 (QTY 1)

Bag Assembly: 337932-702 (QTY 1)
• Screw: 327593-401 (QTY 7)
• Drill Bit (5/64"): 328456-401 (QTY 1)

Bag Assembly: 337932-703 (QTY 1)
• Connector, 1/4" QC ME Both Ends: 66175D55 (QTY 1)
• Brass Connector 1/8" NPT x 2": CA01JZ001 (QTY 1)
• Street Elbow 1/8" NPT: CA15RA001 (QTY 1)
• Brass Street Elbow 1/8" NPT: CA16JQ001 (QTY 1)
• Brass Street Tee - Male Branch: CA21JQ001 (QTY 1)
• Brass Tee - Male Branch: CA21JZ001 (QTY 1)
• Brass Hex Nipple: CA52JZ103 (QTY 1)
• SPLC Connector 3/16": HY89SC047 (QTY 1)
• Wire Tie: HY76TB125 (QTY 1)

• Wire Assembly - Orange: W182X06--04--012 (QTY 1)
• Wire Assembly - Orange: W182X66--04--018 (QTY 1)

Label Sheet: 340740-701 (QTY 1)
• Conversion Rating Plate: 340740-201 (QTY 1)
• Gas Control Conversion Label: 340740-202 (QTY 1)
• Gas Control Adjustment Label: 340740-203 (QTY 1)
• Conversion Rating Plate: 340740-204 (QTY 1)
• Conversion Responsibility Label: 340740-205 (QTY 1)

Label Sheet Includes: 340740-702 (QTY 1)
• Conversion Rating Plate: 340740-206 (QTY 1)
• Conversion Rating Plate: 340740-209 (QTY 1)

Label Sheet: 340740-703 (QTY 1)
• Conversion Rating Plate: 340740-211 (QTY 1)
• Conversion Rating Plate: 340740-214 (QTY 1)

• Installation Instructions: AG-KGB-NP5201VSP-XX (QTY 1)

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 3
Exterior Dimensions (D) (inches) 7.000000
Exterior Dimensions (W) (inches) 5.000000
Exterior Dimensions (H) (inches) 3.000000
Shipping Weight (lbs) 3.000000
