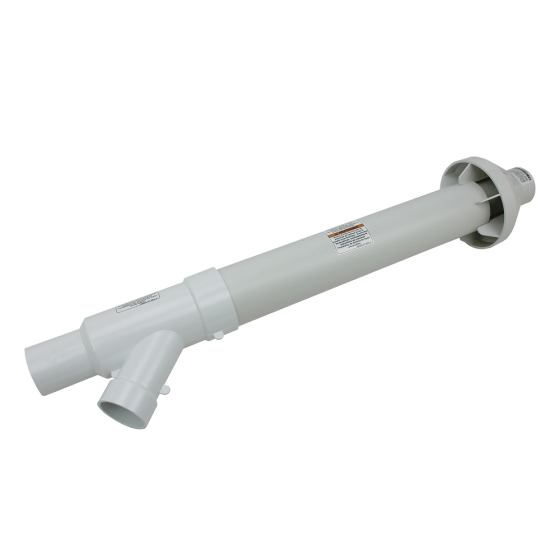

Concentric Vent Termination Kit 3"

Item
KGAVT0801CVT
  • California Prop 65

PRODUCT DETAILS

This kit can be used for 3in. (64 or 76 mm) diameter pipe systems. Both combustion-air and vent pipes must attach to the termination kit. The termination kit must terminate outside the structure. Roof termination is preferred since it is less susceptible to damage, reduces the chance of intaking contaminants, and has less visible vent vapors.

Field-supplied pipe and fittings are required to complete the installation. In the USA, combustion-air and vent pipe fittings must conform to American National Standards Institute (ANSI) and American Society for Testing and Materials (ASTM) standards D1785(schedule-40 PVC), D2665 (PVC-DWV), D2441 (SDR-21 andSDR-26 PVC), D2661 (ABS-DWV), or F628 (schedule-40ABS). Pipe cement and primer must conform to ASTM standards D2564 (PVC) or D2235 (ABS).

INCLUDES

• 3In. (76 mm) Rain Cap (QTY 1)
• 2-1/2 In. (64 mm) Dia. Pipe 37-1/8 in. (943 mm) long (QTY 1)
• 4In. (102 mm) Dia. Pipe 24 in. (610 mm) long (QTY 1)
• 3In. (76 mm) Y Concentric Fitting (QTY 1)
• Installation Instructions (QTY 1)

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 5
Exterior Dimensions (D) (inches) 39.000000
Exterior Dimensions (W) (inches) 10.000000
Exterior Dimensions (H) (inches) 7.500000
Shipping Weight (lbs) 5.000000
