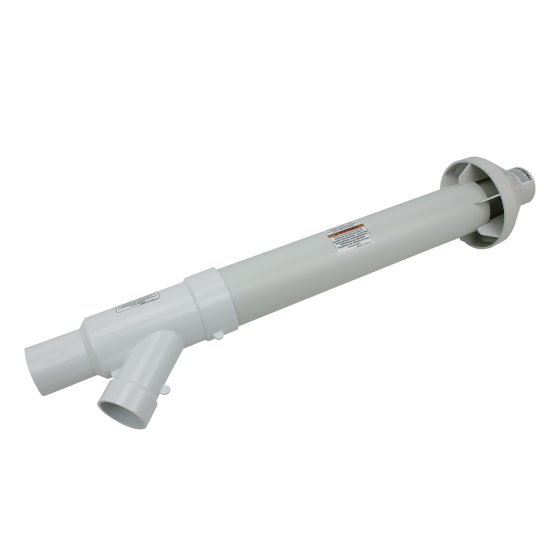

Concentric Vent Termination Kit 2"

PRODUCT DETAILS

This kit can be used for 1, 1-1/2, 2, or 2-1/2 in. (25, 38, 51, or 64 mm) diameter pipe systems. Both combustion-air and vent pipes must attach to the termination kit. The termination kit must terminate outside the structure. Roof termination is preferred since it is less susceptible to damage, reduces the chance of intaking contaminants, and has less visible vent vapors. Field-supplied pipe and fittings are required to complete the installation.

In the USA, combustion-air and vent pipe fittings must conform to American National Standards Institute (ANSI) and American Society for Testing and Materials (ASTM) standards D1785 (schedule-40 PVC), D2665 (PVC-DWV), D2441 (SDR-21 and SDR-26 PVC), D2661 (ABS-DWV), or F628 (schedule-40 ABS). Pipe cement and primer must conform to ASTM standards D2564 (PVC) or D2235 (ABS).

INCLUDES

• 2In. (51 mm) Rain Cap (QTY 1)
• Rain Cap 3-In. (76 mm) (QTY 1)
• 2-In. (51 mm) Dia. Pipe 31-5/8 in. (16 mm) long (QTY 1)
• 3-In. (51 mm) Dia. Pipe 19-1/2 in. (495 mm) long (QTY 1)
• 2-In. (51 mm) Y Concentric Fitting (QTY 1)
• Installation Instructions (QTY 1)
