Gas Conversion Kit (LP to NG)

PRODUCT DETAILS

This kit is designed for use in the furnaces listed below. To accommodate many different furnace models, more parts are shipped in the kit than will be needed to complete conversion. When installation is complete, discard extra parts.

Fixed-Speed, Condensing Furnace Models: 58MCA,58MCB, 58MEB, 58MSA, 58MXA, 58MXB, 340MAV,340AAV, 345MAV, 350MAV, 350AAV, 353AAV, PG9MAA,and PG9MAB. This kit is designed for use in furnaces with 40,000 through 138,000 Btuh gas input rates.

2-Stage Condensing Furnace Models: 58MTA,58MTB, 352MAV, 352AAV and PG9MXA

Variable-Speed, Condensing Models: 58MVP, 58MVB, 58UVB, 355MAV,355AAV, and 355BAV. This kit is designed for use in furnaces with 040 through 120 size furnaces equipped with a dual-fuel electric switch gas valve. Do not use this kit on furnaces equipped with a RED knob gas valve, P/N EF33CZ201.

2-Stage, Non-Condensing Furnace Models: 312AAV,312JAV, 58CTA, and 58CTX.

Variable-Speed Non-Condensing Furnace Models: 315AAV, 315JAV, 58CVA, and 58CVX. This kit is designed for use in furnaces with 44,000 through 154,000 Btuh input rates. The gas valve will be a White-Rodgers 36F with electric control switch.

Fixed-Speed Non-Condensing Furnace Models: 310AAV, 311AAV, 313AAV, 310JAV, 311JAV, 313JAV, 58STA,58DLA, 58PHA, 58STX, 58DLX, 58PHX, PG8MAA,PG8MEA, PG8JAA, and PG8JEA. This kit is designed for use in furnaces with 44,000 through 154,000 Btuh input rates.

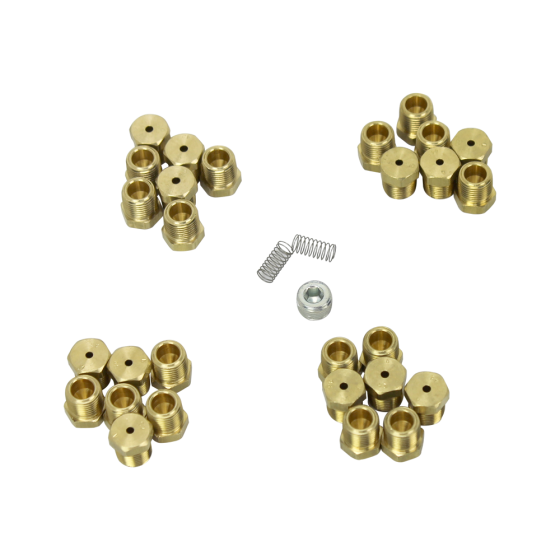

INCLUDES

• Regulator Spring Kit (Natural, Silver) for White-Rodgers 36E, 36F, or 36G Valve: EF39ZW037 (QTY 2)
• Main Burner Orifice (Drill Size No. 42): LH32DB207 (QTY 7)
• Main Burner Orifice (Drill Size No. 43): LH32DB202 7(QTY 7)
• Main Burner Orifice (Drill Size No. 44): LH32DB200 (QTY 7)
• Main Burner Orifice (Drill Size No. 45): LH32DB205 (QTY 7)
• Conversion Rating Plate Label: 334409-204 (QTY 1)
• Conversion Responsibility Label: 334409-205 (QTY 1)
• Gas Control Conversion Label (converted): 334409-203 (QTY 1)
• Installation Instructions: AG-KGAPN-03 (QTY 1)
• Conversion Rating Plate Label: 334409-201 (QTY 1)
• Gas Control Conversion Label (adjusted): 334409-202 (QTY 1)
• Pipe Plug (1/8 in): CA64AS001 (QTY 1)
