Gas Conversion Kit (NG to LP)

Item
KGANP4601ALL
  • California Prop 65

PRODUCT DETAILS

This kit is used to convert the following furnaces from natural gas usage to propane gas. See appropriate section for your furnace type.

Models (1): 58STA, 58STX, 58DLA, 58DLX, 58PHA, 58PHX, 310AAV, 310JAV, 311AAV, 311JAV, 313AAV, 313JAV, PG8MAA, PG8JAA, PG8MEA, PG8JEA, 33.3-Inch High, Induced - Combustion, Hot-Surface Ignition, Single Stage, On--Condensing 4-Way Multipoise Furnaces with 42,000through 154,000 Btuh gas input rates.

Models (2): 58CTA, 58CTX, 58CVA, 58CVX, 312AAV,312JAV, 315AAV, 315JAV, 33.3-Inch High, Induced-Combustion, Hot-Surface Ignition, 2-Stage and Variable-Speed, On-Condensing Furnaces. This kit is designed for use in furnaces with 42,000 through 154,000 Btuh gas input rates.

Models (3): 58MCA, 58MEB, 58MSA, 58MXA,340MAV, 345MAV, 350MAV, 353AAV, 490AAV, and PG9MAA,4-Way Multipoise, Hot Surface Ignition, Single Stage Condensing Furnaces. This kit is designed for use in furnaces with 40,000 through 140,000 Btuh gas input rates.

Models (4): 58MTA, 58MTB, 352MAV, 352AAV, 58MVP,58MVB, 355MAV, 355AAV, 58UVB, 355BAV, and PG9MXA4-Way Multipoise or Dedicated Upflow, Hot Surface Ignition,2-Stage and Variable-Speed, Condensing Furnaces. This kit is designed for use in furnaces with 40,000 through 140,000 Btuhgas input rates.

This kit can replace conversion kit KGANP25012SP for furnaces listed in Sections 2 and 4 as specified on unit rating plate, when gas valve is replaced with Two-Stage Gas Valve P/N EF33CW198 (White-Rodgers36E55). Replacement gas valve is available through RCD.

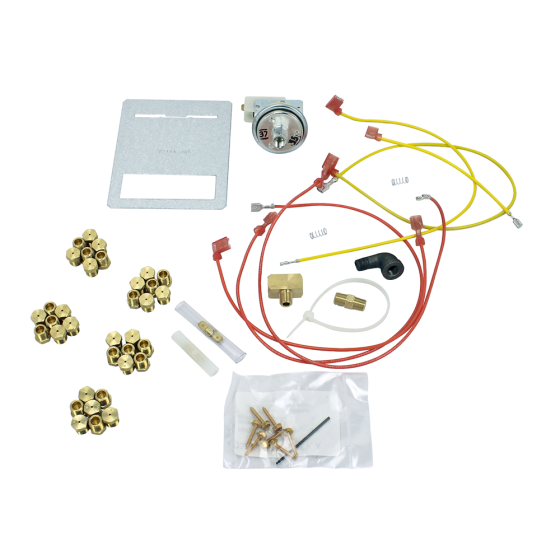

INCLUDES

• Main Burner Orifice (Drill Size 1.30 mm): LH32DB210 (QTY 7)
• Main Burner Orifice (Drill Size 1.25 mm): LH32DB209 (QTY 7)
• Main Burner Orifice (Drill Size No. 54): LH32DB203 (QTY 7)
• Main Burner Orifice (Drill Size No. 55): LH32DB201 (QTY 7)
• Main Burner Orifice (Drill Size No. 56): LH32DB206 (QTY 7)
• Screw, Spoiler Size No. 4: 327593-401 (QTY 7)
• Diverter Plate: 323184-301 (QTY 1)
• Low Gas Pressure Switch (Propane) (LGPS): HK02LB008 (QTY 1)
• Nipple Size 1/8 MPT: CA52JZ103 (QTY 1)
• 90° Street Elbow (1/8 in. / 3 mm): CA15RA001 (QTY 1)
• Male X Female X Female Tee (1/8 in. / 3 mm): CA21JZ001 (QTY 1)
• Splice Connector (1/4 in. Male, Both Ends): 66175D55 (QTY 1)
• Splice Connector (3/16 in. Male, Both Ends): HY89SC047 (QTY 1)
• Orange Wire Assembly (18 in. / 457 mm): W182X23-04-018 (QTY 2)
• Orange Wire Assembly (12 in. / 305 mm): W182X66-04-012 (QTY 1)
• Yellow Wire Assembly (6 in. / 152 mm): W182Y66-11-006 (QTY 1)
• Yellow Wire Assembly (14 in. / 356 mm): W182Y66-11-014 (QTY 1)
• Yellow Wire Assembly (16 in. / 406 mm): W182Y66-23-016 (QTY 1)
• Wire Tie: HY76TB125 (QTY 1)
• Conversion Rating Plate Label, Non-Condensing Furnaces: 334263-204 (QTY 1)
• Conversion Rating Plate Label, Non-Condensing Furnaces: 334263-207 (QTY 1)
• Conversion Rating Plate Label, Condensing Furnaces: 334263-201 (QTY 1)
• Conversion Rating Plate Label, Condensing Furnaces: 334263-206 (QTY 1)
• Conversion Responsibility Label: 334263-205 (QTY 1)
• Gas Control Conversion Label (adjusted): 334263-202 (QTY 1)
• Gas Control Conversion Label (converted): 334263-203 (QTY 1)
• Installation Instructions: AG-KGANP-04 (QTY 1)
• Regulator Spring Kit (White-Propane-EF39ZW023) for White-Rodgers 36C,36E, 36F, 36G and 36J Valve: 92-0659 (QTY 2)
• Drill Bit Size 5/64”: 328456-401 (QTY 1)

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 3
Exterior Dimensions (D) (inches) 7.000000
Exterior Dimensions (W) (inches) 5.000000
Exterior Dimensions (H) (inches) 3.000000
Shipping Weight (lbs) 3.000000
