Internal Vent Kit (Through-Cabinet)
Item
KGADC0101BVC
PRODUCT DETAILS
Use this kit in order to install combustion air and vent pipe through the furnace blower compartment. Some of the parts in this kit will be needed from the loose parts bag that is provided with the furnace:
• Coupling (QTY 1)
• Vent Coupling (QTY 1)
• Air Gasket (QTY 2)
• Hose Clamp (QTY 2)
• Screw (QTY 4)

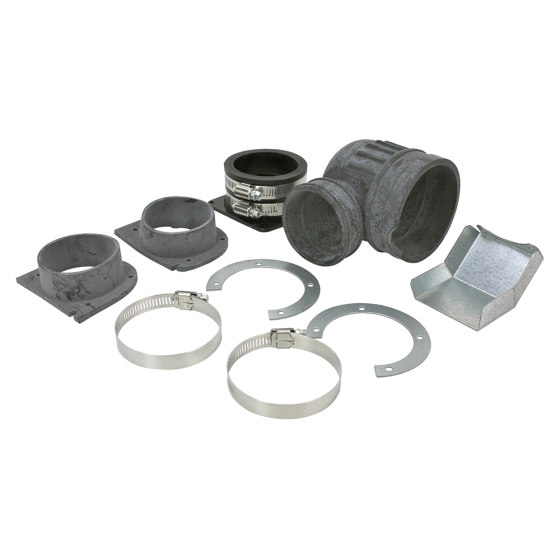

INCLUDES
• Vent Elbow (QTY 1)
• Air Seal (QTY 2)
• Clamp (QTY 2)
• Coupling Assembly (QTY 1)
• Coupling (QTY 1)
• Hose Clamp (QTY 2)
• Screw (QTY 12)
• Sheet (QTY 1)
• Rain Shield (QTY 1)
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1.7 | Exterior Dimensions (D) (inches) | 8.000000 | Exterior Dimensions (W) (inches) | 6.000000 | Exterior Dimensions (H) (inches) | 7.000000 | Shipping Weight (lbs) | 1.700000 |
