APPLICATIONS
Part Number KFADK0201DSC is used with FA, FB, FC, FK, FX, FV, 40FK, and PF fan coils. The kit is designed to provide a manual electrical disconnect for units with cooling controls and heaters 3kw through 10kw.
INCLUDES

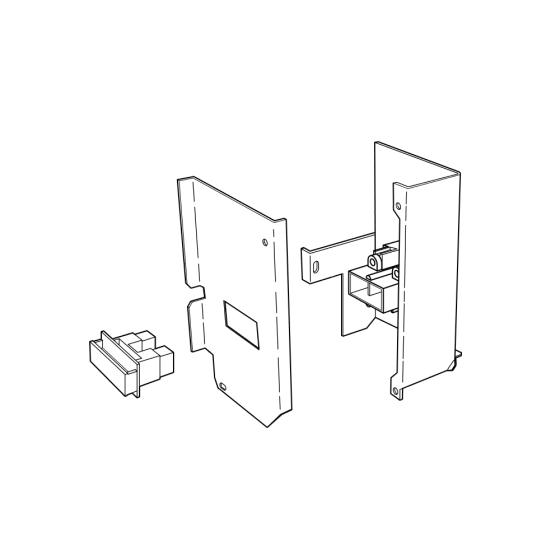

• Disconnect Assembly
• Window Bezel
• No. 10 Hex Head Screws (3)
• Installation Instructions
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 1.896 | Exterior Dimensions (D) (inches) | 9.842500 | Exterior Dimensions (W) (inches) | 7.086600 | Exterior Dimensions (H) (inches) | 1.574800 | Shipping Weight (lbs) | 2.000000 |
