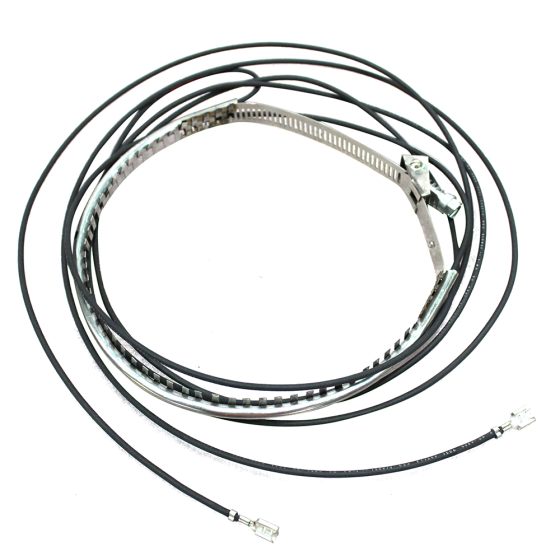

Crankcase Heater Accessory Kit
Item
KAACH1501AAA
APPLICATIONS
The crankcase heater warms the compressor crankcase during the off cycle. Crankcase heater is wired across the open contacts of the contactor. When contactor is de-energized, crankcase heater is on. When contacts are closed, no current flows through the heater because it is on the same line voltage side as the compressor. The heater is used to warm the oil, to reduce refrigerant migration, and ensure proper compressor lubrication.
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 2 | Exterior Dimensions (D) (inches) | 41.000000 | Exterior Dimensions (W) (inches) | 4.000000 | Exterior Dimensions (H) (inches) | 4.000000 | Shipping Weight (lbs) | 2.000000 |
