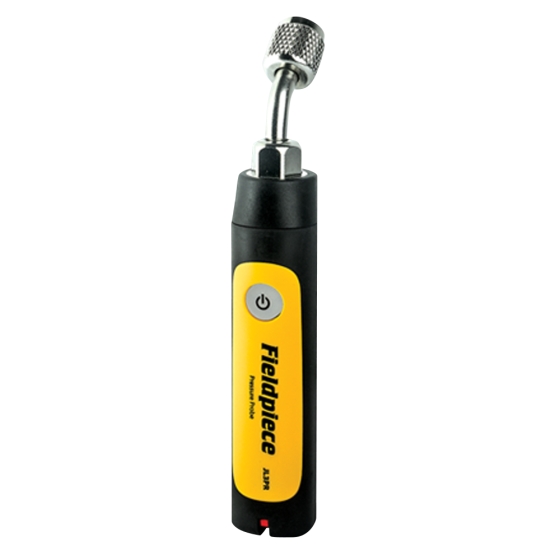

Job Link® System Pressure Probe

FEATURES

Gets the pressure just about anywhere.
Powerful 1000′ wireless range w/no transmitter required
45° angled fitting easily connects in tight spaces
Pressure sensors are accurate at any elevation
Field replaceable gasket
Great for critically charged systems
A2L Compatible
Water resistant

Easily access service ports at odd angles and/or tight spaces with the Job Link® System Pressure Probes. Pressure sensors are accurate at any elevation so your readings are spot on no matter your location.

• 45° angled fitting easily connects in tight spaces
• Pressure sensors are accurate at any elevation
• Calibrates automatically to barometric pressure

Fast-Hands-Free Measurements
Quickly connect onto suction and liquid line pressures for instant measurements. Monitor pressures up to 1000’ away.

Connect Directly to Job Link® System
Send measurements directly to your mobile device with the Job Link® System App.

Low Refrigerant Loss Design
A direct connect to service port means no need for hoses so there is little to no refrigerant loss. Excellent for servicing critically charged systems.

Switchable Suction/Liquid Indicator
The indicator switch automatically tells the Job Link® system which side you’re testing. Select red for liquid side and blue for suction side.

SPECIFICATIONS

• Minimum Device Requirement: BLE 4.0 devices running iOS® 7.0 or Android™ 5.0 (Latest compatibility at www.fieldpiece.com)
• Sensor Type: Relative pressure
• Connector Type: Standard 1/4″ NPT female flare fitting (angled)
• Measurement Range: 29” HgV to 580 psig, 74 cmHgV to 0 to 4000 kPa
• Accuracy:
29” HgV to 0” HgV: ±0.2” HgV; 74 cmHgV to 0 cmHgV: ±1 cmHgV
0 to 200 psig: ±1 psig; 0 to 1378 kPa: ±7 kPa
200 to 580 psig: ±2 psig; 1378 to 4000 kPa: ±14 kPa
• Maximum Overload Pressure: 800 psig (5500 kPa)
• Battery Type: 2 x AAA, NEDA 24A, IEC LR03
• Battery Life: 150 hours typical alkaline. LED blinks red when battery replacement is needed.
• Auto Power Off: 2 hours (APO can be disabled)
• Wireless Range: 1000 feet (305 meters) line of sight. Obstructions affect distance.
• Radio Frequency: 2.4 GHz
• Operating Environment: 32°F to 122°F (0°C to 50°C) at <75% RH
• Storage Temperature: -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with batteries removed)
• Temperature Coefficient: 0.1 x (specified accuracy) per 1.8°F (32°F to 64°F, 82°F to 122°F), per 1°C (0°C to 18°C, 28°C to 50°C)
• Weight: 0.39 lbs (177 g)
• Water Resistant: Designed to IP55

INCLUDES

• Job Link Pressure Probe
• 2 x Replacement Gaskets
• 2 x AAA Batteries
• Operator’s Manual
• 1 Year Limited Warranty
