iWave-M Air Ionzation System 115/208/230Vac, 1,600CFM

APPLICATIONS

iWave-M is a flexible ion-generating bar that can treat IAQ in nearly any HVAC application. The air purifier provides the highest level of ionization energy in the most compact size available in the market, producing 35 million ions/cc. The highly versatile iWave-M is low maintenance with no replacement parts. As the air flows past the iWave-M, the device emits positive and negative ions that treat the air, reducing certain bacteria and viruses in the coil and living space. The ionization process also reduces smoke and static electricity, as well as controlling odors (cooking, pet, VOCs) and other particles (no more sunbeams) in the air. iWave-M meets UL 2998 zero ozone emission certification.

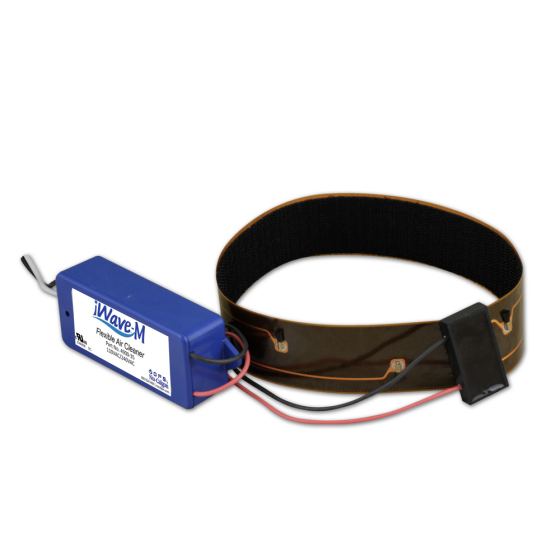

iWave-M's revolutionary circuit bar with special integrated ion-generating needles fits any HVAC cooling coil up to 1600CFM. The circuit bar is chemical resistant and highly durable for long service life. Plus, it can be folded to length in the field to any size and uses hook and loop fastener material for the flexible bar and power pack for easy installation. It is perfect for ductless HVAC systems – specifically mini-splits, commercial VRF coils, PTAC systems – plus residential and commercial duct systems, packaged systems, and even transport cooling coils. The iWave-M is the most versatile and novel product on the market to address air quality for any HVAC system, in particular to solve indoor air quality issues common in hard-to-clean ductless systems.

Three Year Limited Warranty Nu-Calgon offers a three year limited warranty on iWave products. For a valid warranty claim within three years, proof of purchase and proof of installation by a licensed HVAC or Electrical contractor must be provided. See full warranty at iwaveair.com for complete details.

FEATURES & BENEFITS

• Special ion needles routed in a flexible bar circuit
• Compact design applicable for any HVAC systems up to 1,600 CFM
• Can flex easily in the field to accommodate virtually any application - ideal for ductless systems
• Meets UL 2998 zero ozone emission certification
• No replacement parts
• Input Voltage: 110Vac to 240Vac
• Approvals OEM, UL 867, UL 2998
• Input Voltage: 110VAC to 240VAC
• Power (VA): 5 Watts
• 60 Hertz
• Output Voltage 5 KV
• Power Supply Dimensions: 2.0" W x 1.0" H x 3.0" L
• Flexible Bar Dimensions: 1.25" W x 0.05" H x 18" L
• Power Supply Weight: 0.5 lb.
• Service Temp. Range: -40ºF to 140ºF
• Electrical Approvals: UL and cUL recognized
• Plasma Output: 35 million ions/cc per foot
• Indication: Green LED “Power On”
• LED “OFF” = No power or fault
• Mounting: Flexible applications - adhere to
• solid surface
