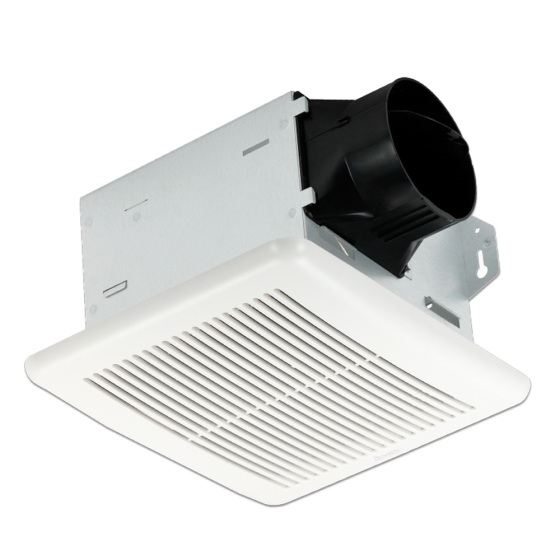

The Delta BreezIntegrity ITG80H ENERGY STAR® Certified Humidity Sensing Ventilation Fan with DC brushless motor is engineered to run continuously for a minimum 70,000 hours; airflow rating of 80 CFM and loudness rating of 1.5 Sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of not more than 10.0 Watts with efficiency rating of 9.0 CFM/Watt. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
FEATURES & BENEFITS
• Energy Star® Certified with DC Motor technology • Quiet operation at 1.5 Sones • ITG80H is UL listed for both ceiling and wall-mount installation • Compact housing for easy retrofit and replacement of older bath fans • Adjustable humidity set points between ~50% to ~80% RH • Adjustable low speed for continuous operation (0 or 50 CFM options) • UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring. • Energy efficiency at 9.0 CFM/Watts • Airflow (CFM @ 0.1 SP): 80 • Sones: 1.5 • Power Consumption (Watts): 10.0 • Energy Efficiency (CFM/Watts): 9.0 • Current (Amps): 0.20 Max • Power Rating (Vac/Hz): 120/60 • Power rating of 120 volts/60Hz
DC Motor/Blower • DC brushless motor engineered to run continuously • Motor equipped with thermal cutoff fuse • Removable with permanently lubricated plug- in motor • Built-in soft start function to increase bearings’ life • Automatically powers off when impeller is locked abnormally
