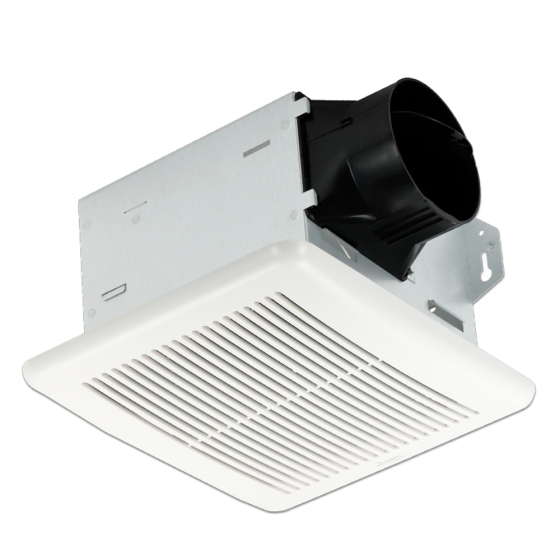

The Delta BreezIntegrity ITG80 ENERGY STAR® Certified Ventilation Fan with DC brushless motor is engineered to run continuously for a minimum 70,000 hours. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
FEATURES & BENEFITS
• Energy Star® Certified with DC Motor technology • Quiet operation at 1.3 Sones • ITG80 is UL listed for both ceiling and wall-mount installation • Compact housing for easy retrofit and replacement of older bath fans • UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring. • Energy efficiency at 8.4 CFM/Watt • Airflow (CFM @ 0.1 SP): 80 • Sones: 1.3 • Power Consumption (Watts): 10 • Energy Efficiency (CFM/Watts): 8.4 • Current (Amps): 0.20 Max • Power Rating (Vac/Hz): 120/60
• DC Motor/Blower • Power rating of 120 volts/60Hz • DC brushless motor engineered to run continuously • Motor equipped with thermal cutoff fuse • Removable with permanently lubricated plug-in motor • Built-in soft start function to increase bearings’ life • Automatically powers off when impeller is locked abnormally
