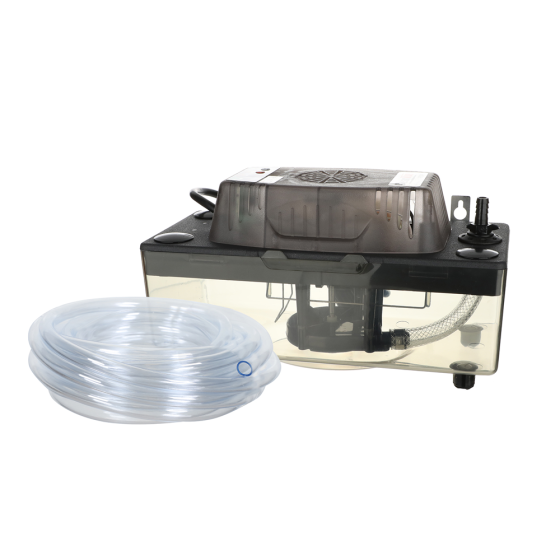

This product is designed to automatically pump condensate produced by HVACR equipment to any height up to 22’ vertically once the level of condensate in the tank reaches a specified level.
FEATURES & BENEFITS
• With Asurity’s Floatless Sensor™ technology, ClearVue™ eliminates the float switch - one of the most common problems with conventional condensate pumps. ClearVue™ uses patent pending water sensing technology to detect condensate so that there are no more stuck floats. ClearVue™ also features a see-through tank to give the service tech and homeowner a clear view of water, blockage, and buildup in the tank. This clear tank allows for quick and easy troubleshooting. • The Variable Speed and Lift in ClearVue™ assures that the pump impeller is spinning only as fast as is needed to lift the condensate water to the height needed. • By monitoring pumping conditions, ClearVue™ is able to detect when a drain line is partially or fully clogged. IN these instances, ClearVue™ increases the pressure in the drain line to attempt to clear the clog. • The Floatless Sensor™ eliminates many of the mechanical problems associated with conventional condensate pumps. • Maximum Condensate Temperatures: Continuous duty 140° F Maximum inlet temperature 160° F Not suitable for contact with steam or gases that exceed 160° F • Rated Voltage: 120 VAC / 60Hz • Rated Current Draw: 1.9 Amps (120 VAC) • Input Type: USA 3-prong molded plug (120 VAC) • Maximum Lift Height: Variable between 0 to 22 feet • Flow Rate @ Zero Head: 1.6 gallons per minute • Dimensions: 11.8” x 5.9” x 6.7” • Weight: 5 lbs • Inlet Height from Base: 4.4” • Tank Capacity: ½ gallon • Wiring Color References: Black – Live/Hot White – Neutral Green – Ground (All installations must conform to local building codes)
INCLUDES
• Instructions • Stainless Steel Hang Tabs • 4’ Remote Shutoff Leads with insulated terminals • Polyethylene inlet covers (3)
