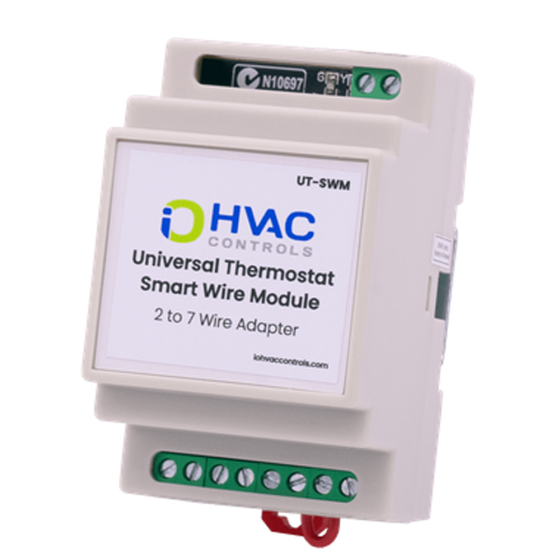

The UT-SWM (Universal Thermostat Smart Wire Module), is an innovative and low-cost solution for applications where you need to control as many as five outputs across a single pair of wires between the thermostat and an indoor AHU.
• Reduces installation costs by not having to pull additional wire
• Send up to 5 additional outputs over a single pair of wires
• Supports both heat pump and conventional HVAC systems
• Compatible with nearly all major thermostat brands
• Includes compact sender module and relay receiver module
• 1 Year Warranty
SPECIFICATIONS
• Power Supply: 24VAC
• Power Consumption: 0.15mA (No Relays), 0.45mA (All Relays On)
• Maximum Load Current: 0.5 Amp @24VAC
• Relays Switching Current: 5 x 1 Amp (Volt Free)
• Maximum Range: 250 Feet
• Transmission Lag: Up to 5 Seconds
• Max Operating Temperature: 122°F (150°F Storage)
