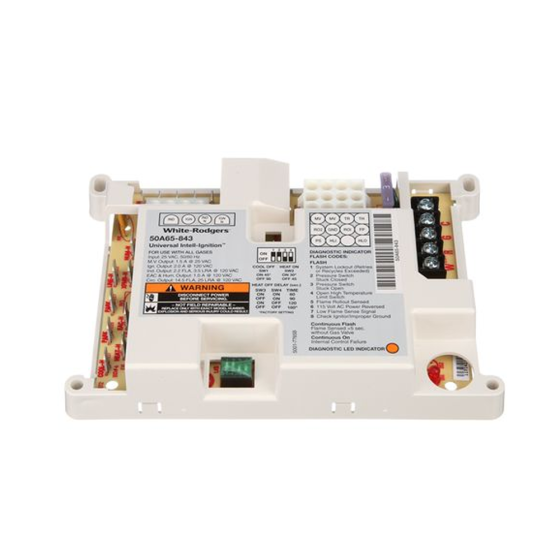

Integrated Furnace Controls Universal Replacement
Item
50A65-843
FEATURES & BENEFITS
• Reduces inventory by providing maximum control replacement coverage.
• Select models include a universal 120V nitride ignitor to allow replacement of 80V and 120V controls.
• Diagnostic LED indicators streamline installation and system troubleshooting.
• 120V air cleaner output and 120V humidifier output up to 1 Amp max.
• Factory standard safety timings and adjustable fan delay options.
• Additional jumpers to extend the length of the connections.
• Multiple Input Voltages: 24 Vac, 120 Vac, 50/60 Hz
• Amp Rating: 14.5 FLA-25.0 LRA @ 120 Vac (Circulator Relay)
• Operating Humidity: 5% to 93% relative humidity (non-condensing)
• Approvals: CSA (Canada & US)
• Agency Approvals: CSA (Canada & US)
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.88 | Exterior Dimensions (D) (inches) | 8.250000 | Exterior Dimensions (W) (inches) | 5.240000 | Exterior Dimensions (H) (inches) | 2.500000 | Shipping Weight (lbs) | 2.000000 |
