Integrated Furnace Controls Universal Replacement

FEATURES

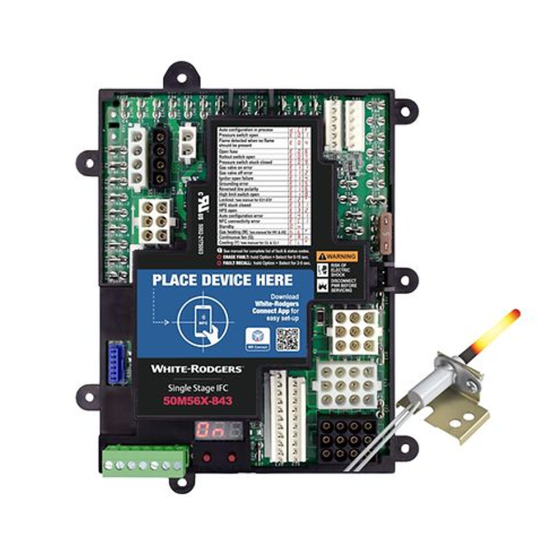

Universal single stage HSI integrated furnace control for PSC and ECMx blower motors. Includes a universal 120V nitride ignitor and utilizes the White-Rodgers Connect app for simple configuration and diagnostics.

• Configurable for either PSC or ECMx blower motors
• Reduce inventory by replacing over 550 part numbers
• Quick configuration (without power) and diagnostics with the White-Rodgers Connect App
• OEM harness detection, no additional harnesses required
• 120V Nitride ignitor included
• 7-Segment LED display provides unlimited configuration options
• Rollout accessory is not required
• Thermostat connector block for simple wiring

SPECIFICATIONS

• Input Voltage: 25 Vac, 60 Hz
• Circulator Relay: 14.5 FLA-25.0 LRA @ 120 Vac
• Operating Temperature Range: -40 to 175 deg. F (-40 to 79 deg. C)
• Operating Humidity: 5% to 93% relative humidity (non-condensing)
• Accessories: Includes Ignitor
• Agency Approvals: UL- US, Canada
