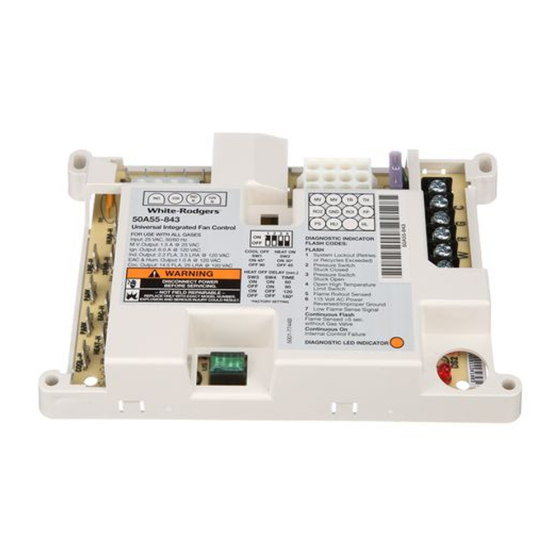

Integrated Furnace Controls Universal Replacement
Item
50A55-843
FEATURES & BENEFITS
• Reduces inventory by providing maximum control replacement coverage.
• Diagnostic LED indicators streamline installation and system troubleshooting.
• 120V air cleaner output and 120V humidifier output up to 1 Amp max.
• Factory standard safety timings and adjustable fan delay options.
• Replaceable automotive style fuse.
• Addition+K2al jumpers to extend the length of the connections.
• Low Voltage Circuit: 24 Vac, 50/60 Hz
• Line Voltage Circuit: 120 Vac, 50/60HZ
• Circulator Relay
• Operating Temperature Range: -40° to 175°F (-40° to 79°C)
• Humidity Range: 5% to 93% relative humidity (non-condensing)
• Agency Approvals: c-CSA-us
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.88 | Exterior Dimensions (D) (inches) | 8.250000 | Exterior Dimensions (W) (inches) | 5.240000 | Exterior Dimensions (H) (inches) | 2.500000 | Shipping Weight (lbs) | 2.000000 |
