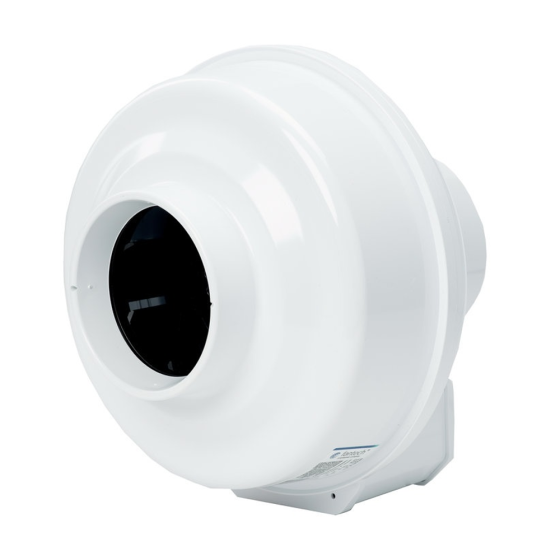

Fantech® Inline Radon Duct Fan 5 in. to 4" in. Round Duct, 150CFM, 120Vac
APPLICATIONS
The Fantech® Rn2 Inline Radon Duct Fan is designed for active radon mitigation systems to employ for applications where medium suction and low flow are needed. It is a perfect choice for medium Radon levels and moderate sub-slab communication. Rn2 replaces HP175, HP190, and HP2190 models.
Manufactured from two molded plastic pieces seamlessly joined. It is inherently and permanently airtight ensuring no Radon gas leakage. A large watertight electrical wiring enclosure ensures electrical installation quick and simple. Fan motor is thermal overload protected with automatic reset and can be installed both indoors or outdoors. To simplify installation on a 3” or 4” PVC pipe, use FRIK 4x3 or FRIK 4x4 Installation kits.
FEATURES & BENEFITS
• Designed specifically for Active Soil Depressurization (ASD) mitigation applications
• Medium suction, low flow
• For residential applications
• Air-tight housing - zero leakage
• UV resistant plastic housing
• UL Listed for safety and outdoor use
• HVI certified fan performance
• 5-year factory warranty
• Voltage (nominal): 120Vac
• Frequency: 60 Hz
• Phases: 1
• Input power: 58W
• Input current: 0.484A
• Impeller speed: 2,533RPM
• Maximum Airflow: 166CFM
• Enclosure class, motor: IP44
• Insulation class: B
• Certificate: cULus, HVI
• Duct dimension; Circular, inlet: 5 in.
• Duct dimension; Circular, outlet: 4 in.
• Weight: 4.9 lbs
• Duct connection type: Round
• Motor type: AC
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 5 | Exterior Dimensions (D) (inches) | 10.000000 | Exterior Dimensions (W) (inches) | 10.000000 | Exterior Dimensions (H) (inches) | 10.000000 | Shipping Weight (lbs) | 5.000000 |
Specification | |
---|---|
CFM | 150 |
