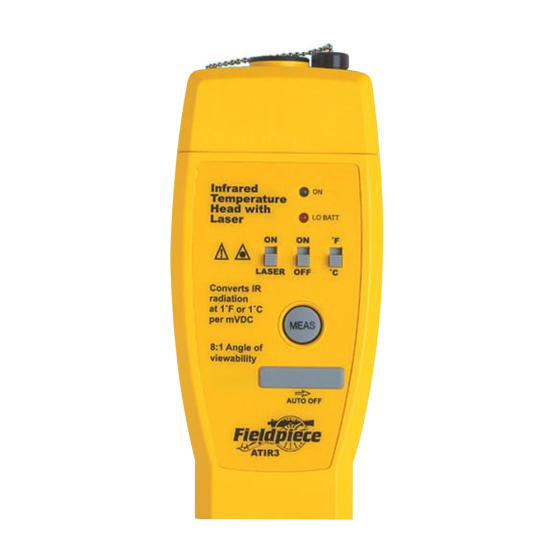

Fieldpiece® Infrared Temperature Accessory Head

APPLICATIONS

The Fieldpiece non-contact Infrared Temperature Accessory with Laser Sight, model ATIR3, collects infrared energy (IR) and converts it to a mVDC signal that is proportional to the temperature being measured. The temperature measured is the average of all the temperatures in the 8:1 cone of viewability. The closer you are to the target, the smaller the area measured. The further away, the larger the area. The digital, non-contact ATIR3 converts the Fieldpiece “Stick” series meter, or electronic handle to a one-piece infrared, or IR, thermometer.

Designed for HVACR professionals, the Non-contact Infrared Temperature Accessory with Laser Sight, model ATIR3, measures infrared energy in its cone of view and converts it into temperature readings on your meter using the mVDC scale.

FEATURES & BENEFITS

• Conversion rate: 1mVDC per 1ºF
• Resolution: 0.1ºF for meters with 0.1mVDC
• Power: Standard 9V battery
• LED indication: green for "On", red for low battery
• Operating temp: 32ºF to 122ºF at <75%RH
• Storage temp: -4ºF to 140ºF at <80%RH with battery removed
• Sensor: Thermopile
• Temperature range: 0ºF to 752ºF
• Accuracy: Whichever is greater. At 73ºF ± 10ºF at <90%RH
±2.0%rdg or 4ºF, 32ºF to 160ºF
±3.0%rdg or 5.5ºF, 0ºF to 31ºF, 161ºF to 752ºF
• Field of view: 8:1
