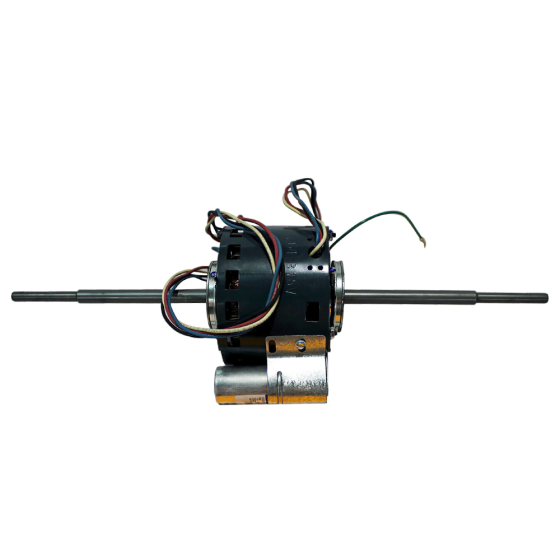

Double Shaft Direct Drive Blower Motor 1080RPM, 115Vac, 1.0A, 5µF/440Vac, 3 Speed, (PSC)
Item
HC27ZN042
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• RPM: 1080
• Number of Speeds: 3
• Rotation: Clockwise (Lead End)
• Voltage: 115Vac
• Amperage: 1.0
• Capacitor: 5µF/440Vac
• 1 Phase
• Hz: 60
• Bearing Type: Sleeve
• NEMA Frame Size: 42
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: A
• Shaft Size: 0.37 x 7.46
SUPERSEDES FROM
• HC27ZN001
• HC27ZN012
• HC27ZN011
• HC27ZN010
• HC27ZN031
• HC27ZN041
• HC27ZN040
• HC29FU115
• 36T25371
• 36W19369
• HC29FU120
• 36T25924
• 36W19141
Specification | |
---|---|
Bearing Type | Sleeve | Motor Frame | 42 | Motor Type | PSC | Number of Speeds | 3 | Rotation | CW LE | RPM | 1080 | Shaft Diameter | 0.37 | Shaft Length | 7.46 |
Electrical | |
---|---|
Amps | 1 | Hertz | 60 | Voltage | 115 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 22.05 | Exterior Dimensions (D) (inches) | 7.010000 | Exterior Dimensions (W) (inches) | 8.750000 | Exterior Dimensions (H) (inches) | 7.240000 | Shipping Weight (lbs) | 22.050000 |
