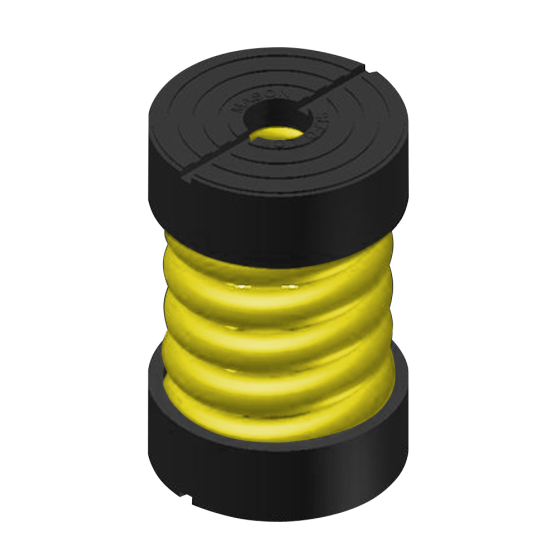

Mason Industries Single Spring Isolation Mount, 7/16", 1.0" Deflection, 113lbs. (Unhoused)

Item
IMF-X-113
  • California Prop 65

APPLICATIONS

Virtually eliminate structurally transmitted noise and vibration by installing equipment on Mason Industries’ Spring Isolators. Properly selected and installed spring isolators offer the greatest assurance that destructive vibration and noise will be eliminated or greatly reduced.

Spring isolators should be installed where maximum vibration and noise control is needed. They are most frequently required on upper building levels and on equipment located near inhabited areas with rotational speeds below 1200 RPM.

FEATURES & BENEFITS

• Rated Capacity (lbs): 113
• Rated Deflection (in): 1.0
• Spring Constant (lbs/in): 113
• Maximum Rod Diameter: 7/16”
• Spring Color: Yellow

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 1
Exterior Dimensions (D) (inches) 2.000000
Exterior Dimensions (W) (inches) 2.000000
Exterior Dimensions (H) (inches) 3.000000
Shipping Weight (lbs) 1.000000
