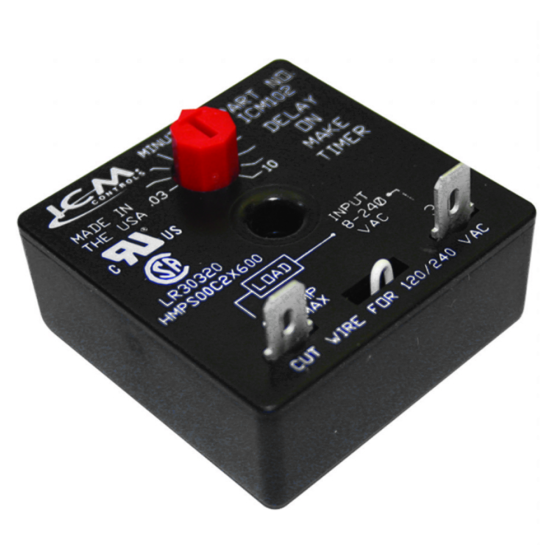

ICM DOM Time Delay Relay

Item

ICM102

FEATURES

When power is applied to the input, the time delay begins. After the time delay is complete, the load energizes.

• Universal voltage operation

• Higher 1.5 amp power rating

• Knob-adjustable time delays

• Works with anticipator-type thermostats

• One model replaces many in field

INPUT

• Voltage: 18-240 VAC

• 1.5 amp

• 15 amp in-rush

• Adjustable Time Delay: .03-10 minutes (1.5-600 seconds)

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	1
Exterior Dimensions (D) (inches)	4.000000
Exterior Dimensions (W) (inches)	4.000000
Exterior Dimensions (H) (inches)	2.000000
Shipping Weight (lbs)	1.000000
