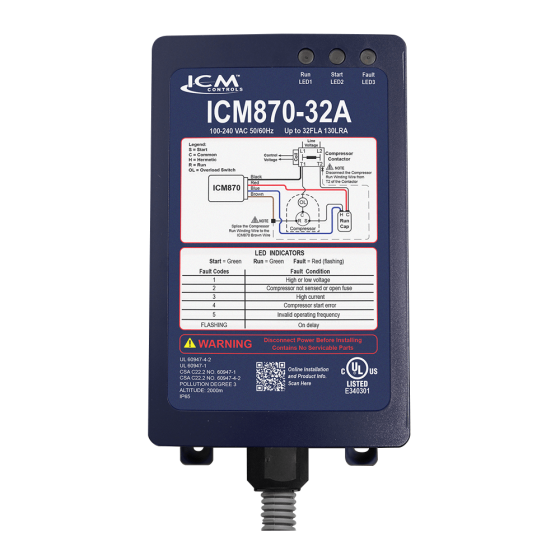

ICM® 32A Soft Starter

Item
ICM870-32A
  • California Prop 65

FEATURES

The ICM870 series soft starts ARE compatible with 2-stage HVAC units. If your 2-stage unit has two compressors, you will need two ICM870 units.

The ICM870 Soft Start is intended for residential, commercial, RV & marine applications. The ICM870 integrates compressor or motor in-rush current over startup time, thus reducing peak current demand on a power supply source by up to 70%.

Effectively reducing power draw to the A/C, the ICM870 utilizes a built-in self-learning algorithm to deliver the optimal in-rush current per application. The ICM870 will monitor system health including voltage, current, compressor startup and integrity. Upon a fault condition, it will halt operation and initiate a 3-minute anti-short cycle routine while providing diagnostic fault information by means of an LED indicator.

NOTE:
The ICM870 Series Soft Starts are NOT recommended to be used with air conditioners or heat pumps which have control boards that sense compressor current and perform a lock out for fault conditions.
  • • Reduces in-rush current/draw necessary at startup by up to 70%
  • • Prolongs the life of A/C by reducing excessive torque, wear and tear
  • • Reduces loud noises, light flickering, and breaker trips
  • • Built-in dynamic start delay
  • • Built-in self-learning algorithm
  • • Over-current protection
  • • Over/under voltage monitoring
  • • Built-in start capacitor
  • • LED fault indicators
  • • Ultrasonically sealed tamper-proof enclosure
  • • Installation hardware is included


  • SPECIFICATIONS

  • • Inputs: L1 & L2
  • • Nominal voltage: 120 VAC, 240 VAC
  • • Over voltage limits: 240 VAC nominal = 264 VAC
  • • Under voltage limits: 120 VAC nominal = 95 VAC, 240 VAC nominal = 195 VAC
  • • Outputs: Compressor
  • • Current: Maximum nominal = 32A
  • • Over current limit: 40A
  • • Operating temperature: -40°F to 131°F (-40°C to 55°C)
  • • Storage temperature: -40°F to 149°F (-40°C to 65°C)
  • • Humidity: 0-95% non-condensing
  • • Enclosure: IP65
  • • Dimensions: 7.94” x 4.20” x 2.10”

  • Safety Standards
    California Prop 65 Yes
    Weights and Dimensions
    Operating Weight (lbs) 1
    Exterior Dimensions (D) (inches) 5.000000
    Exterior Dimensions (W) (inches) 3.000000
    Exterior Dimensions (H) (inches) 2.000000
    Shipping Weight (lbs) 1.000000
