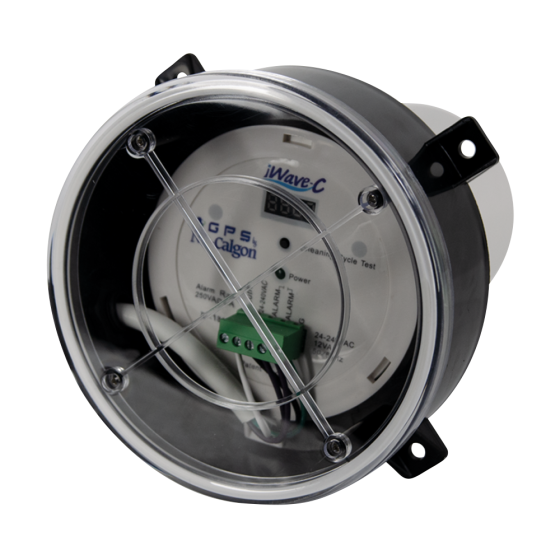

iWave-C Air Ionization System 24-230Vac, 4,800CFM (Commercial)

APPLICATIONS

iWave-C is a self-cleaning, bi-polar ionization generator for actively treating a building’s air quality that does not require replacement parts in a year or two like competing UV lights or other ionizer technologies. In addition, the iWave-C produces and maintains unparalleled ionization output and capabilities. As the air flows past the iWave-C, the device emits positive and negative ions that actively treats the supply air, reducing certain bacteria and viruses in the coil and living space. The ionization process also reduces smoke and static electricity, as well as controlling odors (cooking, pet, VOCs) and other particles (no more sunbeams) in the air. iWave-C is validate to meet UL 867 ozone requirements.

Although suitable for residential applications, the original iWave-C is specially designed for light commercial systems up to 12 tons (4800 CFM) with no maintenance or replacement parts needed. iWave-C can be easily duct-mounted indoors or outdoors, depending on the application. iWave-C always works at peak performance, producing over 200 million ions/cc per polarity (400 million total ions/cc), making it superior to other market approaches. Special features include a programmable self-cleaning cycle, waterproof housing, digital display (for on-site visual monitoring) and integral alarm contact (for remote monitoring). In the event the ion emitters become damaged or wear out (after years of service), they can be replaced on the iWave-C model.

Three Year Limited Warranty Nu-Calgon offers a three year limited warranty on iWave products. For a valid warranty claim within three years, proof of purchase and proof of installation by a licensed HVAC or Electrical contractor must be provided. See full warranty at iwaveair.com for complete details.

FEATURES & BENEFITS

• Needlepoint ionization actively treats air in homes and buildings
• Duct-mount install for systems up to 12 tons (4800 CFM)
• Includes waterproof housing for installation indoors or outdoors
• Reduces certain bacteria and viruses
• Validated to meet UL 867 ozone requirements
• Reduces odors, smoke, static electricity and other airborne particles
• Keeps coil cleaner
• Input Voltage: 24Vac, 240Vac
• Power (VA): 12 VA
• 60 Hertz
• System Size: Up to 12 tons (4800 CFM) - (For systems beyond 12 tons, multiple iWave-Cs can be used. Install a minimum of two feet apart for maximum ion output.)
• Ion Output: 200 millions ions/cc per polarity (400 million total ions/cc)
• Dimensions: 4” W x 7” H x 7” L
• Weight: 3 lbs.
• Electrical Approvals: UL and cUL certified
• Service Temp. Range: -40ºF to 160ºF
• Waterproof Rating NEMA 4X
• Fusing: Internal auto-reset circuit breaker
• Indication: LED display
• Alarm: Includes optional alarm contact
