IAQ Desktop Display BACnet over Wi-Fi

APPLICATIONS

Multiple public studies suggest that indoor environments can profoundly impact the health and decision-making performance of building occupants. Research undertaken as part of these studies has concluded that the levels of carbon dioxide, volatile organic compounds, particulate matter and other contaminants commonly encountered in our indoor spaces should be held within healthy thresholds. Having actionable, real-time data can contribute to increased occupant awareness and drive control strategies that can be deployed to deliver optimum, healthy indoor conditions.

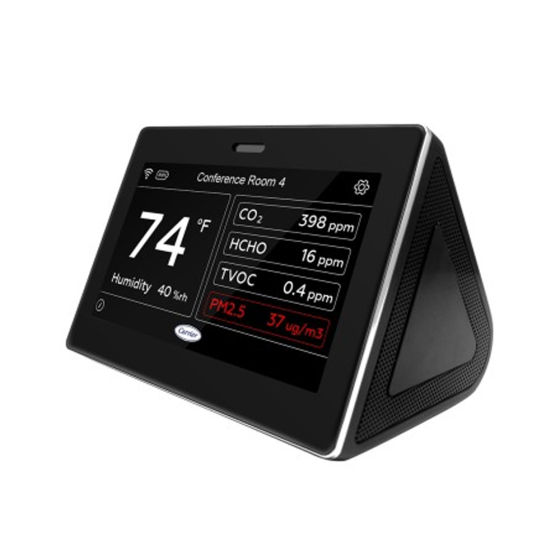

Carrier’s indoor air quality desktop display sensor provides building occupants simple visual indicators and alerts of critical indoor air quality measures.

FEATURES & BENEFITS

• Measures and displays six critical elements of healthy indoor air quality: temperature, humidity, particulate matter (PM2.5), carbon dioxide (CO2), total volatile organic compounds (TVOC), and the carcinogen formaldehyde (HCHO)
• Features a bright 4.3 inch TFT capacitive touch screen with a resolution of 800*480, that dims when not in use
• Easily integrates with the Carrier’s i-Vu system via BACnet/WiFi to share sensed values
• Has a passivive infrared (PIR) human proximity sensor to wake the display when occupants are nearby
• Powered by USB Type-c and has a lithium-ion battery as a backup power supply
• Supports firmware upgrades via USB if required
• Compact, low-profile, attractive design
• Can operate as a stand-alone device
• Power: 5VDC with USB Type-C; 3.6v 2500mAh Lithium Ion Battery (not user accessible or replaceable)
• Communication: BACnet over IEEE 802.1b/g/n Wi-Fi
• Temperature: -0 to 50°C, Resolution: 0.1°C, Accuracy: ±2°C. Sensing element model Sensurion SHT30, sensing element lifetime: > 3 years
• Humidity: 10% RH~90% RH, Resolution: 1% RH, Accuracy: ±10% RH. Sensing element model Sensurion SHT30, sensing element lifetime: > 3 years
• Particulate Matter (PM2.5): 0~500?g/m3(effective range) 0~1000?g/m3 (maximum range). Resolution 1?g/m3, Accuracy 1~100?g/m3 ±(15?g/m3), ±(101~500?g/m3 +15%), sensing element model Plantower PMSA003-C, & element lifetime: > 5 years
• Total Volitile Organic Compounds (TVOC): 125~600ppb, Resolution 1ppb, Accuracy: ±(20ppb+30%) , sensing element model AMS IAQ Core, & element lifetime: > 3 years
• Carbon Dioxide (CO2): 0~5000ppm, Resolution: 1ppm, Accuracy: ±(50ppm +10%). Sensing element model CM1106, & element lifetime: > 5 years
• Formaldehyde (HCHO): 0~2000ppb, Resolution: 1ppb, Accuracy: ±(20ppb+30%). Sensing element model DART(WZ-S-K), & element lifetime: > 3 years
• Environmental Operating Range: 0° to 50°C, 5–95% relative humidity, non-condensing
• Housing: Steel mesh, Polycarbonate, & ABS
• Display: 4.3” diagonal TFT capacitive touch screen with a resolution of 800*480
• Compliance: FCC CE (Power Supply ETL Listed - Conforms to UL STD 62368-1 Certified to CSA STD C22.2 NO. 6236801 US cETL Listed - Intertek 4007202)
