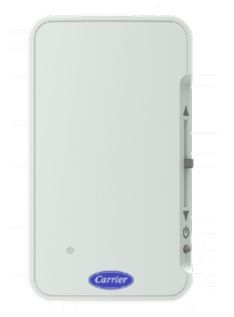

Plus Space Temperature Sensor w/Relative Humidity & CO2
Item
ZS2PL-HC-CAR
OVERVIEW
ZS PRO SENSOR
Temperature, CO2, Humidity, and VOC Sensor
with Occupancy Status, Occupancy Override, and Setpoint Adjust
LCD Display, Alarm Indicator, and Fan Speed Control
Carrier’s line of intelligent ZS space sensors provide the function and flexibility you need to manage the conditions important to the comfort, productivity, and sustainability of your building.
The ZS sensors are available in a variety of zone sensing combinations to address your application needs. These combinations include temperature, relative humidity, and indoor air quality (carbon dioxide and volatile organic compounds (VOCs).
Designed to work with i-Vu controllers and the i-Vu Building Automation System, the ZS sensor line includes the ZS Standard, ZS Plus, ZS Pro, ZS Pro-M and ZS Pro-F.
FEATURES
| ZS Standard | ZS Plus | ZS Pro | ZS Pro-M | ZS Pro-F | |
|---|---|---|---|---|---|
| Model Number | ZS-CAR | ZSPL-CAR | ZSP-CAR | ZS P-M-CAR | ZSPF-CAR |
| Temp, CO2, humidity options | • | • | • | • | • |
| VOC options | • | • | • | • | |
| Neutral color | • | • | • | • | • |
| Motion-sensing option | • | ||||
| Addressable/ supports daisy-chaining | • | • | • | • | • |
| Hidden communication port | • | • | • | • | • |
| Mounts on a standard 2" x 4" electrical box | • | • | • | • | • |
| Occupancy status indicator | • | • | • | • | |
| Push-button occupancy override | • | • | • | • | |
| Setpoint adjust | • | • | • | • | |
| Large, easy-to-read LCD | • | • | • | ||
| Alarm indicator | • | • | • | ||
| Fan speed control | • | ||||
| Cooling / Heating / Fan Only - mode control | • | ||||
| °F to °C conversion button | • |
California residents please see Proposition 65
OPTIONS
| Option | Part Number | ||||
|---|---|---|---|---|---|
| ZS Standard | ZS Plus | ZS Pro | ZS Pro-M | ZS Pro-F | |
| Temperature Only | ZS-CAR | ZSPL-CAR | ZSP-CAR | ZS P-M-CAR | ZSPF-CAR |
| Temp w/CO2 | ZS-C-CAR | ZSPL-C-CAR | ZSP-C-CAR | ZS P-M-C-CAR | ZSPF-C-CAR |
| Temp with Humidity | ZS-H-CAR | ZSPL-H-CAR | ZSP-H-CAR | ZS P-M-H-CAR | ZSPF-H-CAR |
| Temp with VOC | ZS-V-CAR | ZSPL-V-CAR | ZSP-V-CAR | ZSPF-V-CAR | |
| Temp, Humidity, CO2 | ZS-HC-CAR | ZSPL-HC-CAR | ZSP-HC-CAR | ZS P-M-HC-CAR | ZSPF-HC-CAR |
| Temp, Humidity, VOC | ZS-HV-CAR | ZSPL-HV-CAR | ZSP-HV-CAR | ZSPF-HV-CAR | |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Hazardous Material | No |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 0.858000 | Exterior Dimensions (W) (inches) | 2.750000 | Exterior Dimensions (H) (inches) | 4.750000 | Shipping Weight (lbs) | 1.000000 |
