i-Vu® Building Automation System TruVu™ MPCXP1628 Controller Router (16 Outputs, 28 Inputs)
Item
TV-MPCXP1628
OVERVIEW

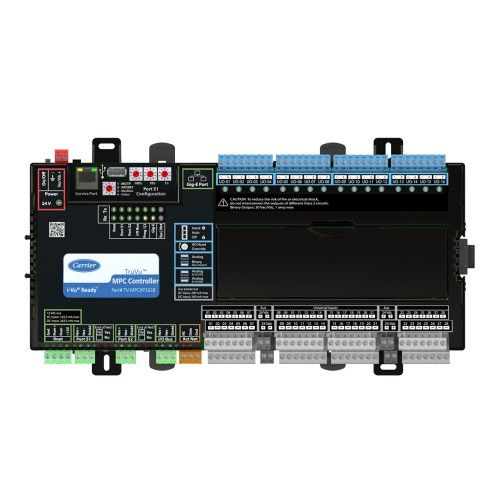

The Carrier® TruVu™ MPCXP1628 controller provides multi-purpose monitoring and control for a variety of HVAC system applications. Flexible and versatile, it supports multiple I/O configurations for accomplishing both common and custom HVAC control strategies.
The TruVu MPCXP1628 controller features built-in routing and integration capabilities, 44 universal I/O points, and support for up to nine TruVu MPC I/O expansion modules for a total of 224 hardware control points.
FEATURES
FEATURES & BENEFITS
Application Features
- Comprehensive library of factory-engineered control programs available for complete air-side and water-side system control
- Graphically programmable using the Snap programming tool
- Supports Carrier communicating room sensors, which allow for local setpoint adjustment and local overrides
Hardware Features
- Gig-E 1000 Mbps Ethernet port supports BACnet/IP, Modbus TCP/IP and DHCP addressing
- Local access 10/100 Ethernet port for system startup and troubleshooting
- Real-time clock keeps time in the event of power failure for up to 3 days without batteries
- Capable of system or stand-alone operation
- Act Net bus supports up to 16 communicating i-Vu smart valves
- Can be din-rail or screw mounted
- Supports up to 9 TruVu MPC I/O expanders
BACnet Features
- Conforms to the BACnet Building Controller (B-BC), BACnet Router (B-RTR), and BACnet BBMD (B-BBMD), standard device profiles
- Supports BACnet interoperability and routing with and between BACnet/IP, BACnet MS/TP, and BACnet over ARC156
- High-speed, BACnet over ARC156 communications delivers information at the speeds necessary for effective data transfer
- Can serve as a BACnet Broadcast Management Device (BBMD)
- Supports BACnet Foreign Device Registration (FDR)
System Benefits
- Fully plug-and-play with the Carrier i-Vu® building automation system
- Supports demand limiting and optimal start for maximum energy savings
- Supports up to 1,500 third-party BACnet points and up to 200 Modbus points for system integration
SPECIFICATIONS
| BACnet Support | Conforms to the BACnet Building Controller (B-BC), BACnet Router (B-RTR, not applicable to -NR version), and BACnet BBMD (B-BBMD) device profiles as defined in BACnet standard135-2001 Annex L 2012 |
| Communication Ports | Gig-E: 10/100/1000 BaseT Ethernet port for BACnet/IP and/or BACnet/Ethernet and/or Modbus Ports TCP/IP communication S1 ARC/MSTP: High-speed EIA-485 port with End of Net switch for connecting one of the following: • BACnet ARCnet network at 156 kbps or BACnet MS/TP network at 9600 to 115.2 kbps • Modbus RTU at 9600 to 115.2 kbps S2 MSTP: Electrically isolated EIA-485 port with End of Net switch for connecting one of the following: • BACnet MS/TP network at 9600 to 115.2 kbps • Modbus RTU at 9600 to 115.2 kbps Service: 10/100 Base T Ethernet port for system start-up and troubleshooting IO Bus port: Provides communication for wired TruVu MPC I/O expanders that are powered by external power supplies. IO Bus edge connector: 6-pin connector that provides communication and power to a directly-connected TruVu MPC I/O expander |
| Third Party Integration | Supports up to 1,500 third-party BACnet points and 200 Modbus points (memory dependent). |
| Physical | Fire-retardant plastic ABS, UL94-5VA |
| Universal Inputs | 16 Bit A/D with 28 channels electronically configured to any of the following input types: Dry Contact OR Pulse Counting inputs up to 60Hz OR Voltage (0-10 Vdc) OR Current (0-20 mA) OR Thermistor (Precon Type II 10k? OR Precon Type III 10k? OR Carrier YSI 5k? OR S-5700-850 10k? w/ 11k? shunt) OR RTD (Platinum RTD TS-8000 1k? @ 32°F (0.00385 TCR) OR Platinum RTD 1k? @ 32°F (0.00375 TCR) OR Nickel-iron RTD 1k? @ 70°F, 699 ? @ -40°F OR Balco (Nickel-iron) TS8000 RTD 1k? @ 70°F, 779 ? @ -40°F) 24VDC auxiliary sensor power: 200mA max. (AC power input) 500 mA max. (DC power input) |
| Universal Outputs | D/A Resolution (analog out) 12 bits; 16 channels configurable to any of the following output types: Voltage (0-10 Vdc) OR Current (0-20 mA) OR Relay contacts, potential free, normally open, rated 24VAC/DC @ 1 Amp (resistive) Hand/Auto/Off override switches for all outputs, Potentiometer for manual adjustment of all analog outputs, Status LED for all outputs |
| Protection | Two fast acting, 5mm x 20mm glass fuses: • A 2.5A fuse for the TV-MPCXP1628’s power • A 4A fuse for the I/O bus edge connector. The power and network ports comply with the EMC requirements EN50491-5-2. |
| Compliance | United States of America: FCC compliant to Title CFR47, Chapter 1, Subchapter A, Part 15, Subpart B, Class A; UL listed to UL916, PAZX, Energy Management Equipment Canada: Industry Canada Compliant, ICES-003, Class A; cUL listed UL 916, PAZX and Energy Management Equipment Europe: EN50491-5-2:2009; Low Voltage Directive: 2014/35/EU; RoHS Compliant: 2011/65/EU Australia and New Zealand: C-Tick Mark, AS/NZS 61000-6-3 |
| Real Time Clock | Real-time clock keeps track of time in the event of a power failure for up to 3 days. |
| Environmental Operating Range | -40 to 158ºF (-40 to 70ºC) 10 to 95% RH, non-condensing |
California residents please see Proposition 65
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Hazardous Material | No |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 2.8 | Exterior Dimensions (D) (inches) | 2.090000 | Exterior Dimensions (W) (inches) | 6.950000 | Exterior Dimensions (H) (inches) | 12.750000 | Shipping Weight (lbs) | 2.800000 |
