i-Vu® Building Automation System TruVu™ MPC I/O Expanders (0 Outputs, 12 Inputs)

  • California Prop 65


MPC I/O Expanders


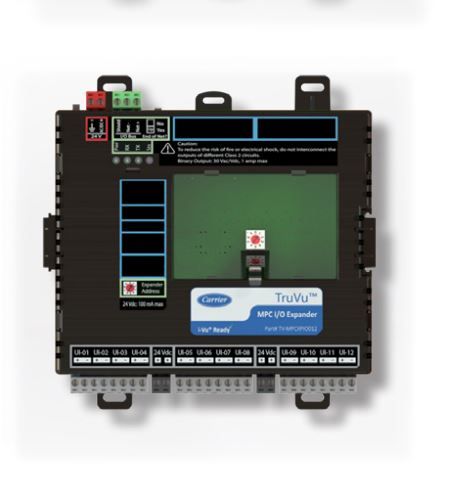

The Carrier® TruVu™ MPC I/O expanders provide I/O point capacity for the TruVu MPC Processor. Flexible and versatile, the TruVu MP Processor supports multiple I/O configurations for accomplishing both common and custom HVAC control strategies.



Application Features

  • Comprehensive library of factory-engineered control programs available for complete air-side and waterside system control
  • Graphically programmable using the Snap programming tool

Hardware Features

  • Adds up to 180 I/O points to the TruVu MPC Processor
  • Removable screw terminals for I/O connections
  • Supports din-rail or screw tab mounting
  • Hand-Auto-Off switches on all output channels
  • Software selectable configuration - no jumpers
  • Expanders can be mounted to MPC processor in a compact configuration or remotely mounted up to 1000 feet away

System Benefits

  • Fully plug-and-play with the Carrier i-Vu® building automation system
  • Supports demand limiting and optimal start for maximum energy savings
  • Compatible with i-Vu Tenant Billing for tracking tenants’ after-hours energy usage


Communication Ports IO Bus port: Provides communication for wired TruVu MPC I/O expanders that are powered by external power supplies.
IO Bus edge connector: 6-pin connector that provides communication and power to a directlyconnected TruVu MPC I/O expander
Inputs TV-MCXPIO48: 8 inputs
TV-MPCXPIO812: 12 inputs
TV-MPCXPIO012: 12 inputs
-Inputs software configurable for 0-5 VDC, 0-10 VDC, 0-20 mA, thermistor (5k, 10k Type II), 1k RTD (Platinum,Nickel, or Balco), and Dry Contact.
-Inputs are 16 bit A/D and support up to 40 pulses per second (12.5 msec min. pulse).
Outputs TV-MCXPIO48: 4 outputs
TV-MPCXPIO812: 8 outputs
-Outputs can be set as analog or binary outputs.
-Analog outputs can be used for 0-10 VDC, 0-20 mA (12 bit A/D).
-Binary outputs have a built-in relay and can be used to switch external devices or relays up to 1A, 30Vac/Vdc.
-HAO (hand/auto/off) switches are on each output, including potentiometers for manual adjustment of analog outputs.
Protection Two fast acting, 5mm x 20mm glass fuses:
• A 2A fuse for the TV-MPCXPIO expander’s power
• A 4A fuse for the I/O bus edge connector
• The power and network ports comply with the EMC requirements EN50491-5-2.
Status Indicators LED status of communications, power, running, errors, and outputs
Compliance United States of America: FCC compliant to Title CFR47, Chapter 1, Subchapter A, Part 15, Subpart B, Class A; UL listed to UL916, PAZX, Energy Management Equipment
Canada: Industry Canada Compliant, ICES-003, Class A; cUL listed UL 916, PAZX and Energy Management Equipment
Europe: EN50491-5-2:2009; Part 5-2: EMC requirements for HBES/BACS used in residential, commercial and light industry environment EN50491-3:2009, Part 3: Electrical safety requirements for Home and Building Electronic Systems (HBES) and Building Automation and Control Systems (BACS) Low Voltage Directive: 2014/35/EU RoHS Compliant: 2011/65/EU
Australia and New Zealand: C-Tick Mark, AS/NZS 61000-6-3
Real Time Clock Real-time clock keeps track of time in the event of a power failure for up to 3 days.
Environmental Operating Range -40 to 158ºF (-40 to 70ºC) 10 to 95% RH, non-condensing

California residents please see Proposition 65

Safety Standards
California Prop 65 Yes
Hazardous Material No
Weights and Dimensions
Operating Weight (lbs) 1.1
Exterior Dimensions (D) (inches) 2.090000
Exterior Dimensions (W) (inches) 6.950000
Exterior Dimensions (H) (inches) 6.900000
Shipping Weight (lbs) 1.100000
