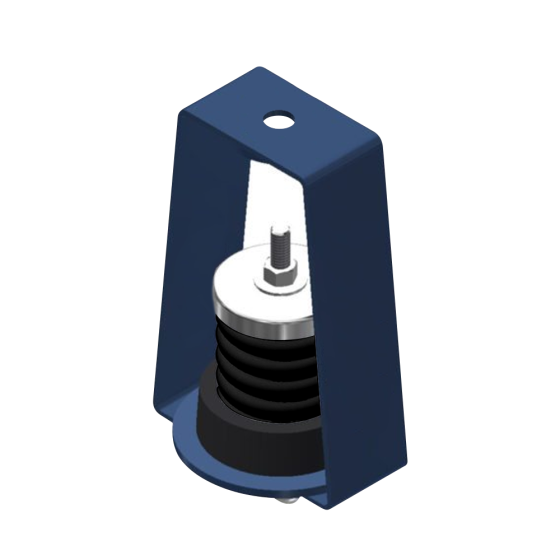

Mason Industries Single Spring Hanger, 3/8 in., 1.02 in. Deflection, 76lbs.
Item
HSX-76
APPLICATIONS
The HS Spring Hangers evolved using our standard A, B and C Springs and seating them in LDS cups with projecting bushings to line the hole in the lower end of the box. A, B and C Springs are designed for horizontal stiffness, so they do not fall over or buckle. Centering the spring in the acoustical cup made steel-to-steel contact of the rod and the top steel cup unimportant and put the rubber in the right location on the leaving end of the spring.
FEATURES & BENEFITS
• Rated Capacity (lbs): 76
• Rated Deflection (in): 1.02
• Spring Constant (lbs/in): 73
• Maximum Rod Diameter: 3/8”
• Spring Color: White
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1.6 | Exterior Dimensions (D) (inches) | 2.500000 | Exterior Dimensions (W) (inches) | 2.875000 | Exterior Dimensions (H) (inches) | 4.250000 | Shipping Weight (lbs) | 2.000000 |
